Compression Type Electrical Cable Lugs Excellent Conductivity For Electromobile

China Compression Type Electrical Cable Lugs Excellent Conductivity For Electromobile supplier
Compression Type Electrical Cable Lugs Excellent Conductivity For Electromobile supplier Compression Type Electrical Cable Lugs Excellent Conductivity For Electromobile supplier Compression Type Electrical Cable Lugs Excellent Conductivity For Electromobile supplier

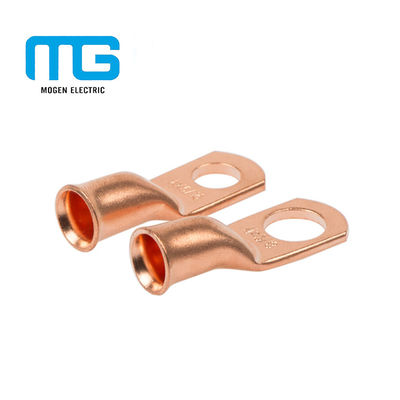

Large Image :  Compression Type Electrical Cable Lugs Excellent Conductivity For Electromobile

Product Details:

Place of Origin: WENZHOU, CHINA
Brand Name: MOGEN / MG
Certification: CE, ROHS, ISO9001, SGS,TUV
Model Number: JGK

Payment & Shipping Terms:

Minimum Order Quantity: 1bags
Price: Price is negotiable
Packaging Details: standard export packing
Delivery Time: 3-30 days, depending on purchase quantity
Payment Terms: T/T or LC(big amount orders), Western Union
Supply Ability: 1000000pcs per week
Contact Now
Detailed Product Description
Samples: Free Samples Wire Range: 10mm2 - 800mm2
Another Name: Cable Lugs Total Length: 18mm - 200mm
Body Material: Pure Copper Surface Plating: Tined
High Light:

cable terminal lugs

,

copper terminal lugs

Compression Type Copper Cable lugs Battery Terminal Lugs Wire terminals connector 70mm2 SC70-10 3/8" SC70-12 1/2"

Headline:



MOGEN Cable Lugs are manufactured from 99.95% oxygen-free high conductivity copper tube and are electro tinned.



  • The materials are high quality copper, by vacuum annealing, better conductivity, ductility and low impedance;
  • The surface is smooth with high touch force;The surface is tinned for corrosion protection and preventing the electronic effect;

  • Wire can be cremped or soldered to copper lug,widely used in electromobile, charging pile; electrical engineering, power system, distribution equipments, etc







Specifications:

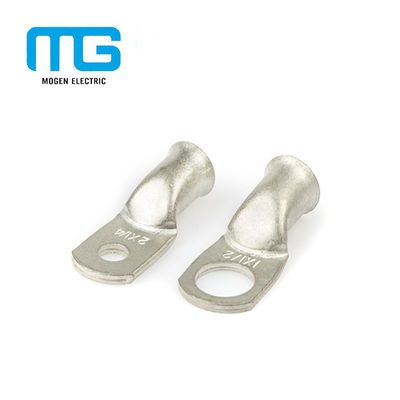

Compression Type Electrical Cable Lugs Excellent Conductivity For Electromobile



Item No Dimension(mm)
φ D d L
SC(JGK)-1.5 φ4.2,φ5.2 3.5 1.8 18
SC(JGK)-2.5 φ4.2,φ5.2,φ6.2 4 2.5 19
SC(JGK)-4 φ5.2,φ6.2 4.8 3.1 21
SC(JGK)-6 φ5.2,φ6.2,φ8.2 5.5 3.8 24
SC(JGK)-10 φ6.2,φ8.2 6.8 4.8 25.5
SC(JGK)-16 φ6.2,φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGK)-25 φ6.2,φ8.2,Φ10.5 9 7 34
SC(JGK)-35 φ6.2,φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGK)-50 φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGK)-70 φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGK)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGK)-120 φ12.5,φ16.5 19.5 15.5 63
SC(JGK)-150 φ12.5,φ16.5 21 16.5 71
SC(JGK)-185 φ16.5 23.5 18.8 78
SC(JGK)-240 φ16.5 26.5 21 92
SC(JGK)-300 φ16.5,φ20.5 30 24 102
SC(JGK)-400 φ16.5,φ20.5 34 26.5 113
SC(JGK)-500 φ16.5,φ20.5 38 30 123
SC(JGK)-630 φ20.5 45 35 135
SC(JGK)-800 φ22.5 50 39 170
SC(JGK)-1000 φ22.5 56 44 200



Transport:



Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).



Also, we can transport the goods by air or by sea(Quantity is big).




Packing:

Compression Type Electrical Cable Lugs Excellent Conductivity For Electromobile

FAQ



1 Q:Do you have your own factory or just a trading company?

A: We have our R&D, producing, marketing and trading team, more than 200 employees in total. With 12 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.



2 Q: Could you change the size for the customer?

A: Yes, sizes can be customized, for more details please contact us.



3 Q: How many days delivery the order?

A: Normally after deposit or L/C 15 days,In case of urgent need, delivery date can be advanced depends on your request.



4 Q: Do you provide free sample?

A:Yes, Sample can be provided with freight charge to be collected.





5 Q: Do you accept OEM or ODM?

A:Yes, OEM and ODM are available, any legal logo can be printed on the product.



6 Q:How about the after-sale service?

A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
