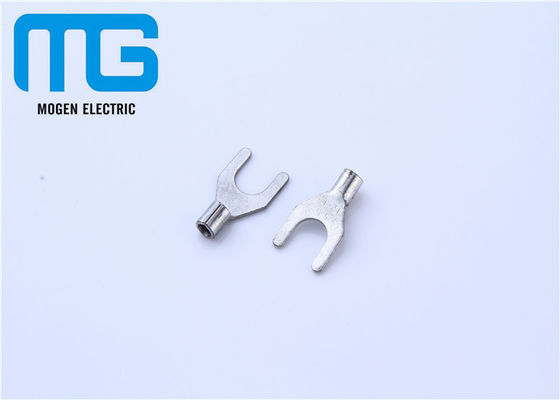

Copper Non Insulated Terminals SNB Series Spade Terminal Connectors

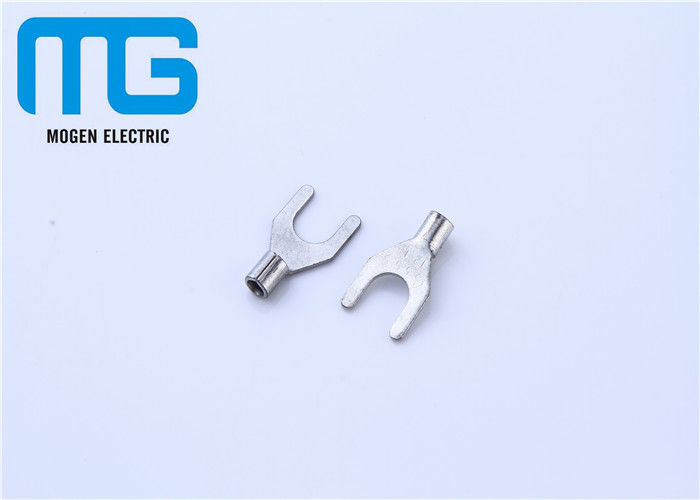

: Large Image : Copper Non Insulated Terminals SNB Series Spade Terminal Connectors

Product Details:

Place of Origin:	CHINA
Brand Name:	MOGEN
Certification:	CE, ROHS, ISO9001
Model Number:	SNB SNBS SNBM SNBL

Payment & Shipping Terms:

Minimum Order Quantity:	100bags
Price:	Price is negotiable
Packaging Details:	100pcs/bags
Delivery Time:	3-30day
Payment Terms:	T/T,L/C,Paypal
Supply Ability:	10000bags/day

Contact Now

Detailed Product Description

Another Name:	Naked Terminals	Max Current:	19A 27A 37A 62A 88A 115A
Wire Range:	0.5-1.5mm2 1.5-2.5mm2 2.5-4mm2 4-6mm2 6-25mm2	Samples:	Provide Free Samples
Material:	Copper	Plating:	Tin
High Light:	brass spade terminals , tin plated terminals

Copper Non Insulated Terminals SNB Series Spade Terminal Connectors

Terminal body:	Copper
Plating:	Tin
Max current:	37A
Wire range:	4-6 mm2
A.W.G.	12-10

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.

2) Processing: Cold press

3) Material: T2 copper with tinned surface, cridible conductivity; PVC insulation cover, no break or rebound.

4) Certificate: ISO9001-2008

5) Manufacturer: price advantage, quick delivery

Wire range: 05-1.5mm2	A.W.G. 22-16	Imax=19A
Wire range: 1.5-2.5mm2	A.W.G. 16-14	Imax=27A
Wire range: 2.5-4mm2	A.W.G. 14-12	Imax=37A
Wire range: 4-6mm2	A.W.G. 12-10	Imax=37A
Wire range: 6-25mm2	A.W.G. 8-4	Imax=62A-115A

Copper Non Insulated Terminals SNB Series Spade Terminal Connectors

Item No	Stud size	Dimension(mm)
Item No	Stud size	d2	B	L	F	E	Dφ	dφ

SNB1.25-3.2	#4	3.2	5.7	16.0	6.5	4.8	3.4	1.7
SNBS1.25-3.5	#6	3.7	5.7	16.0	6.5
SNBL1.25-3.5	#6	3.7	6.4	16.0	6.5
SNBS1.25-4	#8	4.3	6.4	16.0	6.5
SNBM1.25-4	#8	4.3	7.2	16.0	6.5
SNBL1.25-4	#8	4.3	8.1	16.0	6.5
SNBS1.25-5	#10	5.3	8.1	16.0	6.5
SNBL1.25-5	#10	5.3	9.5	16.0	6.5
SNBS1.25-6	1/4	6.4	9.5	16.0	6.5
SNBL1.25-6	1/4	6.4	12.0	22.0	11.0
SNB1.25-8	5/16	8.4	14.5	23.5	12.5
SNB2-3.2	#4	3.2	5.7	16.0	6.5	4.8	4.1	2.3
SNBS2-3.5	#6	3.7	5.7	16.0	6.5
SNBL2-3.5	#6	3.7	6.0	16.0	6.5
SNBS2-4	#8	4.3	6.4	16.0	6.5
SNBM2-4	#8	4.3	7.2	16.0	6.5
SNBL2-4	#8	4.3	8.1	16.0	6.5
SNBS2-5	#10	5.3	8.1	16.0	6.5
SNBL2-5	#10	5.3	9.5	16.0	6.5
SNBS2-6	1/4	6.4	9.5	16.0	6.5
SNBL2-6	1/4	6.4	12.0	22.0	11.0
SNB2-8	5/16	8.4	14.5	23.5	12.5
SNB3.5-3	#4	3.2	5.7	18.3	7.0	6	5	3
SNB3.5-4	#8	4.3	8.0	18.3	7.0
SNB3.5-5	#10	5.3	8.0	18.3	7.0
SNB3.5-6	1/4	6.4	12.0	21.5	12.1
SNB5.5-3.5	#6	3.7	8.3	19.5	7.5	6.8	5.6	3.4
SNBS5.5-4	#8	4.3	8.3	19.5	7.5
SNBL5.5-4	#8	4.3	9.0	19.5	7.5
SNB5.5-5	#10	5.3	9.0	19.5	7.5
SNBS5.5-6	1/4	6.4	9.0	19.5	7.5
SNBL5.5-6	1/4	6.4	12.0	25.5	12.0
SNB5.5-8	5/16	8.4	14.0	24.5	11.5
SNB8-4	#8	4.3	8.7	23.0	6.0	8.5	7.2	4.5
SNB8-5	#10	5.3	12.0	24.5	5.7	8.5	7.2	4.5
SNB8-6	1/4	6.4	12.0	24.5	5.7	8.5	7.2	4.5
SNB8-8	5/16	8.4	14.5	28.0	8.3	8.5	7.2	4.5
SNB14-6	1/4	6.4	12.0	28.0	7.5	10.5	9.0	5.8
SNB14-8	5/16	8.4	14.0	28.0	7.5	10.5	9.0	5.8
SNB22-8	5/16	8.4	14.0	34.5	9.0	12.0	11.5	7.7
