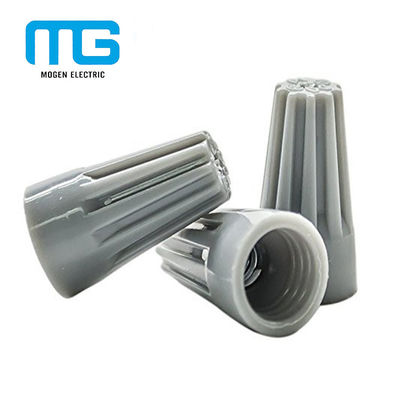

Electrical Insulated Wire Connectors Screw With Wire Nuts Screw Type
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Sprial SP6 Connectors | Sleeve Material: | PVC |
|---|---|---|---|
| Terminal Body: | Steel With Zn Plated | Sample: | Provide Free Samples |
| Color: | Grey | Item No: | SP1 |
| High Light: | nylon quick disconnects,copper wire connectors |
||
Wire Nuts Screw Type Wire Connectors Screw Screw On Wire Connectors Electrical Insulated Wire Connectors
Headline:
- PVC plating Zn naked Screw-on wire connectors SP6 red color
- Wire Connectors , Wire Joints , Screw On Wire Connector , Yellow color SP4
- Wenzhou OEM Screw-on Wire Connector sprial SP3 orange Closed end connectors
- Yueqing OEM Screw-on Wire Connectors About SP2 blue Closed end connectors
- 2017 hot sales high quality Assorted SP1 gray Screw on plastic wire connector
- Hot selling multiple types screw-on insulated wire connectors PVC Steel plated Zn
- Screw On Wire Connectors(quick wire connector
Product Description:
| Materials | |
| Insulation | PVC |
| Terminal Body | Steel |
| Plating | Zn |
| Color | Grey |
Features:
- Industry standard twist on connector with top quality, performance and durability
- Tight, square wire spring makes quick and secure connections for positive continuity
- Tough, thermoplastic shell shields against environmental extremes
- Color: gray red yellow blue orange and other colors are available as requested.
in
| Item No | Dimension(mm) | Wire range | Color | |||||
| A | B | C | ||||||
| SP1 | 6.70 | 8.60 | 15.20 | Min 0.75×1+0.5×1 Max 1.5×2 | Grey | |||
| SP2 | 7.40 | 9.80 | 17.60 | Min 0.75×3 Max 1.5×3 | Blue | |||
| SP3 | 9.90 | 12.70 | 22.00 | Min 0.75×3 Max 1.5×3+1×1 | Orange | |||
| SP4 | 11.20 | 14.00 | 24.60 | Min 0.25×1+0.75×1 Max 2.5×4+0.75×1 | Yellow | |||
| SP6 | 13.30 | 16.40 | 26.50 | Min 0.25×2 Max 6×2+4×2 | Red | |||
MOGEN has own manufacture for more than 20 years of Specializing in various of terminals and connector.
As a professional manufacturer of terminals, we do good quality to cooperate with many countries, such as Russia, Brazil, US, Dubai and so on.
