Insulated Female Electrical Quick Disconnect With CE ROHS Certified

China Insulated Female Electrical Quick Disconnect With CE ROHS Certified supplier
Insulated Female Electrical Quick Disconnect With CE ROHS Certified supplier Insulated Female Electrical Quick Disconnect With CE ROHS Certified supplier

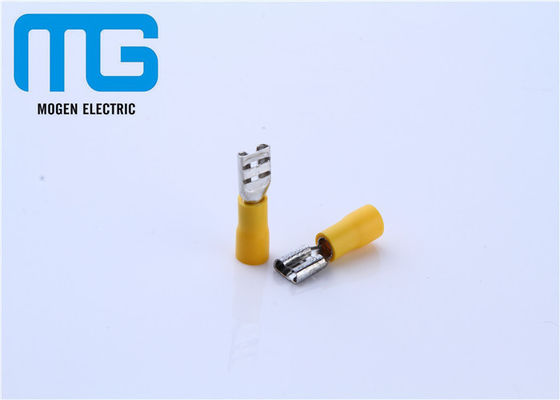

Large Image :  Insulated Female Electrical Quick Disconnect With CE ROHS Certified

Product Details:

Place of Origin: CHINA
Brand Name: MOGEN
Certification: CE ROHS ISO9001 SGS
Model Number: FDD

Payment & Shipping Terms:

Minimum Order Quantity: 100bags
Price: Price is negotiable
Packaging Details: 100pcs/bags
Delivery Time: 3-30day
Payment Terms: T/T,L/C,Paypal
Supply Ability: 10000bags/day
Contact Now
Detailed Product Description
Another Name: Insulated Disconnects Certificate: ISO9001 ROHS CE SGS
Samples: Provide Free Samples Wire Range: 0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2
Color: Red Blue Yellow Material: Brass With Tin Plated, PVC
High Light:

wire crimp terminals

,

insulated female disconnects



Factory Price CE ROHS PVC Brass Insulated Female Electrical Quick Disconnect



Crimp insulated terminals,FDD insulated female disconnectors,Brass insulated female terminals



FDD insulated cable female disconnect terminals



Descriptions:



Max current: 10A 15A 24A



Materials: Nylon, PVC, Heat shrinkable tubes



Surface: Tin & mat-tin plated



AWG: 22-16 16-14 12-10 Inchs



Wire Size: 0.5-1.5mm,1.5-2.5mm,4-6mm



Sample time: Free Samples Within 48 Hours





Product Name
Disconnect Female Terminals
Terminal Body
Brass
Color
Red Insulation: Conductor size 0.5-1.5mm/ 22-16awg.
Blue Insulation: Conductor size 1.5-2.5mm / 16-14awg.
Black Insulation: Conductor size 2.5-4.0mm / 14-12awg.
Yellow Insulation: Conductor size 4.0-6.0mm / 12-10awg.
Insulation
PVC
Plating
Tin
Max Voltage (Ui)
300V
Temperature
105°c

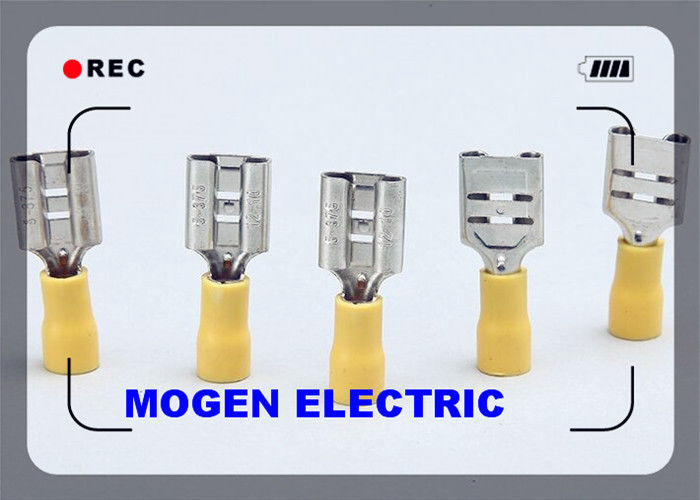

Insulated Female Electrical Quick Disconnect With CE ROHS Certified


Item No
(mm)
Nema Tab
                          Dimension(mm)
Color
B L H

FDD1.25-110(5) 0.5×2.8 3.8 1.7 3.8 19.0 10.0
Red
FDD1.25-110(8) 0.8×2.8 3.8 1.7 3.8 19.0 10.0
FDD1.25-187(5) 0.5×4.75 5.6 1.7 3.8 19.0 10.0
FDD1.25-187(8) 0.8×4.75 5.6 1.7 3.8 19.0 10.0
FDD1.25-205 0.5×5.2 6.5 1.7 3.8 20.0 10.0
FDD1.25-250 0.8×6.35 7.4 1.7 3.8 21.0 10.0
FDD2-110(5) 0.5×2.8 3.8 2.3 4.3 19.0 10.0
Bule
FDD2-110(8) 0.8×2.8 3.8 2.3 4.3 19.0 10.0
FDD2-187(5) 0.5×4.75 5.6 2.3 4.3 19.0 10.0
FDD2-187(8) 0.8×4.75 5.6 2.3 4.3 19.0 10.0
FDD2-205 0.5×5.2 6.5 2.3 4.3 20.0 10.0
FDD2-250 0.8×6.35 7.4 2.3 4.3 21.0 10.0
FDD2-312 0.8×8.0 9.0 2.3 4.3 23.0 10.0
FDD5.5-250 0.8×6.35 7.4 3.4 5.7 25.0 13.0
Yellow
FDD5.5-375 1.2×9.4 10.9 3.4 5.7 29.6 13.0




Packing:
Our normal packing is 1000/500pcs per bag, one bag in a box, outside by export carton.
We also can pack as customers' requirements.
