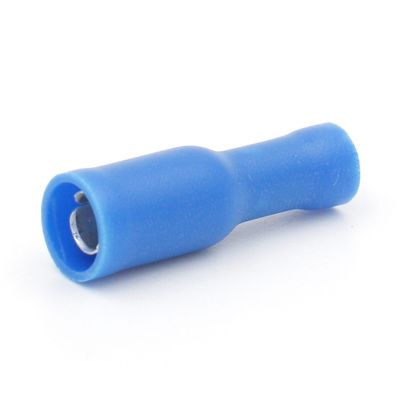

Male / Female Insulated Bullet Wire Connectors With Brass Terminal Body
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Bullet Connector | Terminal Body: | Brass |
|---|---|---|---|
| Plating: | Tin | Color: | Blue |
| Samples: | Provide Free Samples | Original: | WENZHOU, CHINA |
| Wire Range: | 1.5-2.5mm2 | A.W.G: | 16-14 |
| High Light: | nylon quick disconnects,copper wire connectors |
||

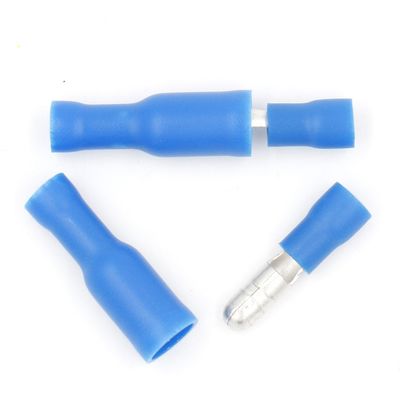

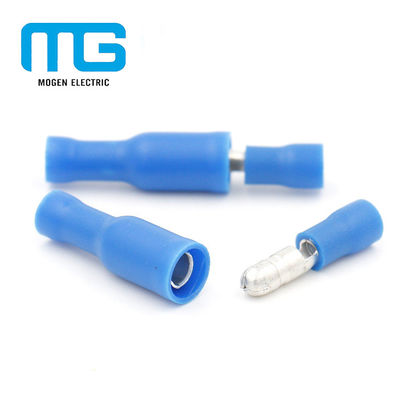

Male / Female Insulated Bullet Wire Connectors Insulated Wire Connectors
Headline:
Insulated Bullet crimp terminal connector with AWG 22-16,max current 10A
Insulating male bullet terminal connector joint with WAG 16-14,max current 15A

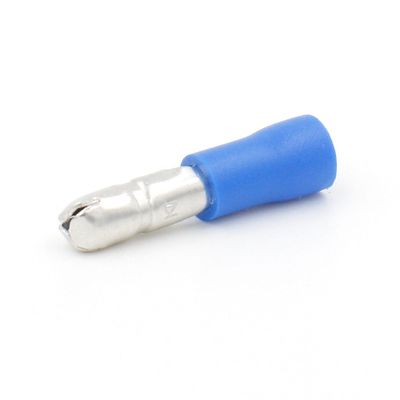

Insulated Bullet Male Disconnects
| Wire range: 0.5-1.5mm2 | A.W.G 22-16 |
Imax current=10A |
| Wire range: 1.5-2.5mm2 | A.W.G. 16-14 |
Imax current= 15A |
| Wire range: 4-6mm2 | A.W.G. 12-10 |
Imax current= 24A
|
Packing:
- 1.100pcs / bag
- 2.Packing also can be customized according to customer
- 3. Logo or tags can be printed on carton
Item No |
Dimension(mm) | Color |
||||||
| dφ | F | Dφ | H | L | ||||
| MPD1.25-156 | 4.0 | 11.0 | 1.7 | 10.0 | 21.0 | Red |
||
| MPD1.25-176 | 4.5 | 14.0 | 1.7 | 10.0 | 24.0 | |||
| MPD2-156 | 4.0 | 11.0 | 2.3 | 10.0 | 21.0 | Bule |
||
| MPD2-176 | 4.5 | 14.0 | 2.3 | 10.0 | 24.0 | |||
| MPD2-195 | 5.0 | 11.0 | 2.3 | 10.0 | 21.0 | |||
| MPD5.5-195 | 5.0 | 12.0 | 3.4 | 13.0 | 25.0 | Yellow |
||
