MPD Bullet Male Quick Disconnect and Electrical Quick Disconnect
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Quick Disconnects | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Max Current: | 10A 15A 24A |
| Material: | Brass With Tin Plated, PVC | Color: | Red Blue Yellow |
| High Light: | insulated female disconnects,plastic wire connectors |
||

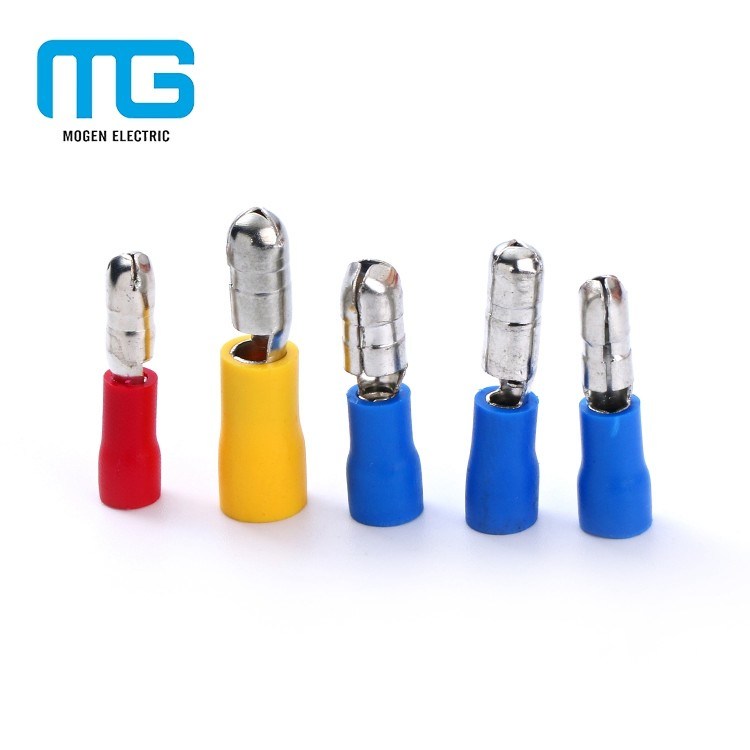

MPD Bullet Male Quick Disconnect and Electrical Quick Disconnect
Headline:
Tinned Copper Insulated Terminal Connector MPD Bullet Male Quick Disconnects kits
China top-grade factory MPD 1.25-156 vinly insulated butt male quick disconnects kits
MPD Insulated male bullet disconnects high quality insulated terminals
Good Quality Professional Insulated Male Bullet Connector MPD tinning Disconnects
Durable MPD Bullet Electrical Disconnector for Automotive Insulated Male Terminal
China MPD Series Bullet Shape Male Pre Insulated Electric Quick Disconnect
Hot selling MPD Insulated Bullet arrester Disconnects outdoor
Descriptions:
Wire Range: 0.5 - 1.5mm2 & 1.5 - 2.5mm2 & 4 - 6mm2
A.W.G: 22 - 16 & 16 - 14 & 12 - 10
Max Current: 10A & 15A & 24A
Sample time: Free Samples Within 48 Hours
Material: Copper, Nylon, PVC, Brass
Color: Red, Yellow, Blue
Application: Wire Connection
Business Type of terminal: Manufacturer, OEM, ODM
Quality: 100% Inspection
|
Wire Range
|
0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2
|
|
A.W.G.
|
22-16 16-14 12-10
|
|
Max Current
|
10A 15A 24A
|
Item No |
Dimension(mm) | Color |
||||||
| dφ | F | Dφ | H | L | ||||
| MPD1.25-156 | 4.0 | 11.0 | 1.7 | 10.0 | 21.0 | Red |
||
| MPD1.25-176 | 4.5 | 14.0 | 1.7 | 10.0 | 24.0 | |||
| MPD2-156 | 4.0 | 11.0 | 2.3 | 10.0 | 21.0 | Blue |
||
| MPD2-176 | 4.5 | 14.0 | 2.3 | 10.0 | 24.0 | |||
| MPD2-195 | 5.0 | 11.0 | 2.3 | 10.0 | 21.0 | |||
| MPD5.5-195 | 5.0 | 12.0 | 3.4 | 13.0 | 25.0 | Yellow |
||
How long is the delivery time?
It depends on the quantity.
For samples or regular items in small qty , we promise to sent in 1-3 days. Most have in stock.
For mass production, such like 20ft container we will sent in 15-30 days .
Packing:
Inner packing: 1000pcs / poly bag Outer packing: export carton 37cm * 37cm * 26.5cm
Diagrammatic Drawing And Data Sheet Of MPD tinning bullet Insulated Male Disconnects :
