Non insulated End Terminals Wire Copper Crimp Connector Pin Cord End Terminals

China Non insulated  End Terminals Wire Copper Crimp Connector Pin Cord End Terminals supplier
Non insulated  End Terminals Wire Copper Crimp Connector Pin Cord End Terminals supplier Non insulated  End Terminals Wire Copper Crimp Connector Pin Cord End Terminals supplier Non insulated  End Terminals Wire Copper Crimp Connector Pin Cord End Terminals supplier

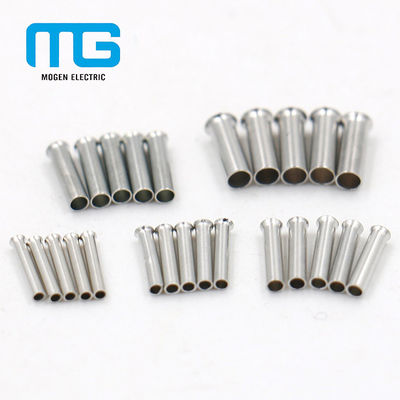

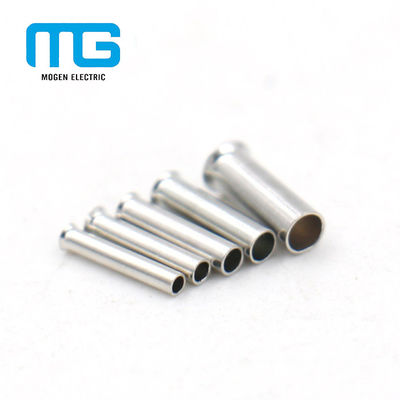

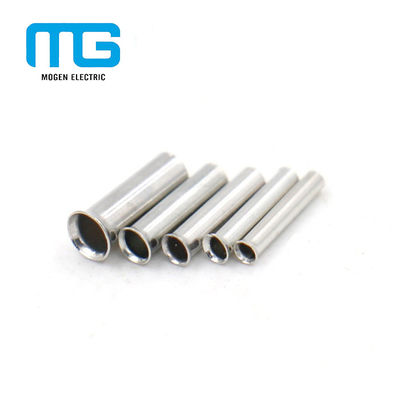

Large Image :  Non insulated End Terminals Wire Copper Crimp Connector Pin Cord End Terminals

Product Details:

Place of Origin: CHINA
Brand Name: MOGEN
Certification: CE ROHS ISO9001 SGS
Model Number: EN

Payment & Shipping Terms:

Minimum Order Quantity: 100bags
Price: Price is negotiable
Packaging Details: 100pcs/bags
Delivery Time: 3-30day
Payment Terms: T/T,L/C,Paypal
Supply Ability: 10000bags/day
Contact Now
Detailed Product Description
Another Name: Cold Crimp EN Terminals Certificate: ISO9001 ROHS CE SGS
Samples: Provide Free Samples Wire Range: 0.3 - 185 Mm2
A.W.G.: 24 - 300/350 MCM Material: Copper With Tin Plated
High Light:

uninsulated butt connectors

,

automotive butt connectors

Non- insulated core End Terminals cable lugs terminal with Tin-plated copper

Non-Insulated cord end terminals ,crimping terminals.

EN series Non-insualted Tube  Cable lug Wire end crimping terminals








Drawing &Specification

Non insulated  End Terminals Wire Copper Crimp Connector Pin Cord End Terminals

Item No Dimension(mm) Wire range
L A.W.G. mm2

EN 0306 6.0 1.1 0.8 1.5 24 0.3
EN 0308 8.0
EN 0505 5.0 1.3 1 1.7 22 0.5
EN 0506 6.0
EN 0508 8.0
EN 0510 10.0
EN 0512 12.0
EN 7506 6.0 1.5 1.2 1.9 20 0.75
EN 7508 8.0
EN 7510 10.0
EN 7512 12.0
EN 7515 15.0
EN 1006 6.0 1.7 1.4 2.2 18 1
EN 1008 8.0
EN 1010 10.0
EN 1012 12.0
EN 1015 15.0
EN 1018 18.0
EN 1507 7.0 2 1.7 2.5 16 1.5
EN 1508 8.0
EN 1510 10.0
EN 1512 12.0
EN 1515 15.0
EN 1518 18.0
EN 2506 6.0 2.6 2.3 3.3 14 2.5
EN 2507 7.0
EN 2508 8.0
EN 2510 10.0
EN 2512 12.0
EN 2515 15.0
EN 2518 18.0
EN 4009 9.0 3.2 2.8 3.9 12 4
EN 4010 10.0
EN 4012 12.0
EN 4015 15.0
EN 4018 18.0
EN 6006 6.0 3.9 3.5 4.7 10 6
EN 6010 10.0
EN 6012 12.0
EN 6015 15.0
EN 6018 18.0
EN 10-12 12.0 4.9 4.5 5.8 8 10
EN 10-15 15.0
EN 10-16 16.0
EN 10-18 18.0
EN 16-12 12.0 6.2 5.8 7.2 6 16
EN 16-15 15.0
EN 16-16 16.0
EN 16-18 18.0
EN 16-20 20.0
EN 16-22 22.0
EN 16-25 25.0
EN 16-30 30.0
EN 25-12 12.0 7.9 7.5 9.1 4 25
EN 25-15 15.0
EN 25-16 16.0
EN 25-18 18.0
EN 25-20 20.0
EN 25-22 22.0
EN 25-25 25.0
EN 25-30 30.0
EN 35-12 12.0 8.7 8.3 10.2 2 35
EN 35-15 15.0
EN 35-16 16.0
EN 35-18 18.0
EN 35-20 20.0
EN 35-25 25.0
EN 35-30 30.0
EN 50-12 12.0 10.9 10.3 12.7 1/0 50
EN 50-18 18.0
EN 50-22 22.0
EN 50-25 25.0
EN 50-30 30.0
EN 70-22 22.0 14.3 13.5 15.8 2/0 70
EN 70-25 25.0
EN 70-30 30.0
EN 90-25 25.0 15.6 14.8 17.3 3/0 95
EN 90-30 30.0
EN 90-32 32.0
EN 120-30 30.0 17.7 16.7 20.2 4/0 120
EN 120-32 32.0
EN 120-34 34.0
EN 120-38 38.0
EN 150-32 32.0 20.6 19.6 23 250/300
MCM
150
EN 150-34 34.0
EN 150-38 38.0
EN 185-32 32.0 21.4 20.2 23.9 300/350
MCM
185
EN 185-40 40.0



Company Information:
Non insulated  End Terminals Wire Copper Crimp Connector Pin Cord End TerminalsNon insulated  End Terminals Wire Copper Crimp Connector Pin Cord End Terminals
"MOGEN Electric Co., Ltd" is a leading manufacturer and exporter of
terminals&connectors. The range of our product line, good quality, and competitive prices have made us one of the fastest growing companies of its kind in China.We continuously improve all aspects of quality,we have been overcome our difficulties encountered in research and development.The following is showed in detail about this product:



FAQ



1. Q: Could I put my own logo on it?



A: Sure,customers' logo can be printed or put on the items.



2. Q: How about the guarantee of the items?



A: According to the actual situation.



3. Q: How about the quality?



A: Over 1 year. Each product will be different warranty,please contact us.



4. Q: How about the certificates?


A: TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC


5. Q: Could I buy 1pcs sample first and small order?



A: Of course,support sample order and small order, especially for new customers under certain condition.



6. Q: How much for 1pcs sample?



A: Sample can be provided free.



7. Q: How long to make a sample?



A: Samples will be prepared within three days.


8. Q: What payment is acceptable?


A: PayPal or western is accaptable for samples.Non insulated  End Terminals Wire Copper Crimp Connector Pin Cord End TerminalsNon insulated  End Terminals Wire Copper Crimp Connector Pin Cord End Terminals
