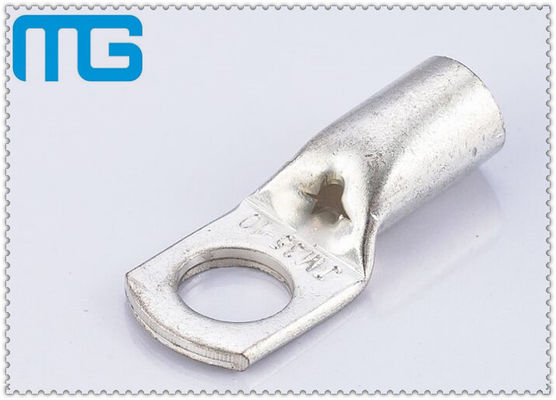

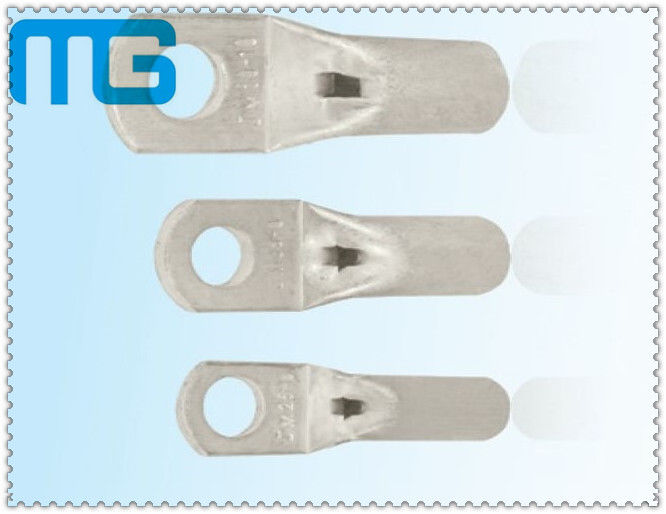

Round Hole Copper Cable Lugs Diameter 6 8 10mm Crimping Terminal Lugs
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | JGY Copper Cable Lugs | Body Material: | Copper |
|---|---|---|---|
| Surface Plating: | Tin | Samples: | Provide Free Samples |
| Wire Range: | 1.5mm2 - 1000mm2 | Total Length: | 18mm - 200mm |
| High Light: | copper terminal lugs,electrical wire lugs |
||
Round Hole Copper Cable Lugs Diameter 6 8 10mm Crimping Terminal Lugs
Headline:
Copper Connecting Terminal (JGY Type) SC(JGY)-25 round hole diameter 6 8 10mm
SC(JGY) 16mm2 Copper Cable Terminal Lugs round hole diameter 6mm 8mm 10mm
Materials:
Terminal Body: Copper
Surface plating: Tin
Wire range: 1.5mm2 - 1000mm2
Total length: 18mm - 200mm
Specifications:
Item No |
Dimension(mm) | |||||||
| φ | D | d | L | |||||
| SC(JGY)-1.5 | φ4.2,φ5.2 | 3.5 | 1.8 | 18 | ||||
| SC(JGY)-2.5 | φ4.2,φ5.2,φ6.2 | 4 | 2.5 | 19 | ||||
| SC(JGY)-4 | φ5.2,φ6.2 | 4.8 | 3.1 | 21 | ||||
| SC(JGY)-6 | φ5.2,φ6.2,φ8.2 | 5.5 | 3.8 | 24 | ||||
| SC(JGY)-10 | φ6.2,φ8.2 | 6.8 | 4.8 | 25.5 | ||||
| SC(JGY)-16 | φ6.2,φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 | ||||
| SC(JGY)-25 | φ6.2,φ8.2,Φ10.5 | 9 | 7 | 34 | ||||
| SC(JGY)-35 | φ6.2,φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 | ||||
| SC(JGY)-50 | φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 | ||||
| SC(JGY)-70 | φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 | ||||
| SC(JGY)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 | ||||
| SC(JGY)-120 | φ12.5,φ16.5 | 19.5 | 15.5 | 63 | ||||
| SC(JGY)-150 | φ12.5,φ16.5 | 21 | 16.5 | 71 | ||||
| SC(JGY)-185 | φ16.5 | 23.5 | 18.8 | 78 | ||||
| SC(JGY)-240 | φ16.5 | 26.5 | 21 | 92 | ||||
| SC(JGY)-300 | φ16.5,φ20.5 | 30 | 24 | 102 | ||||
| SC(JGY)-400 | φ16.5,φ20.5 | 34 | 26.5 | 113 | ||||
| SC(JGY)-500 | φ16.5,φ20.5 | 38 | 30 | 123 | ||||
| SC(JGY)-630 | φ20.5 | 45 | 35 | 135 | ||||
| SC(JGY)-800 | φ22.5 | 50 | 39 | 170 | ||||
| SC(JGY)-1000 | φ22.5 | 56 | 44 | 200 | ||||
FAQ:
1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it’s impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
3. Q: I can’t find the product on your catalogue, can you make this product for me?
"A: Our catalogue shows most of our products, but not all. So just let us know what product do you need,
and how many do you want. If we do not have it, we can also design and make a new mould to produce
it. For your reference, making a ordinary mould will take about 30days."
