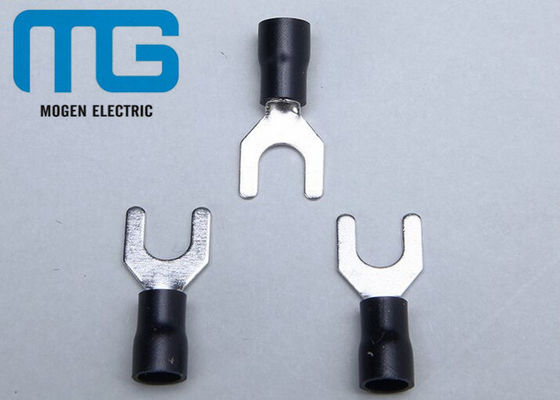

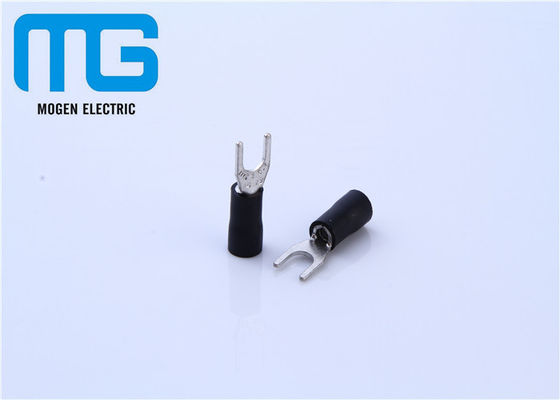

SV3.5 copper electrical spade Insulated Wire Terminals Tin plated TU-JTK black color PVC

SV3.5 copper electrical spade Insulated Wire Terminals Tin plated TU-JTK black color PVC

---

We can supply Non-insulated Spade Terminals Screw on Wire Connector Insulated Hook Terminals, Closed-End



Connectors, connector, cable connector, wire connector, insulated ring terminals, fork pre-insulated terminals, pin



pre-insulated terminals and pipe pre-insulated terminals. We can provide good quality and good service with



competitive prices.

---

Features:



1. Made by high purity copper



2. Tin plating: Corrosion Resistance



3. Certificate: ISO9001 SGS CE CQC



4. Color: Red Blue Black Yellow



5. Type: TU-JTK



6. Thickness: 0.7mm 0.8mm 1.0mm



Place of Origin: Zhejiang, China (Mainland)



Brand Name: MG MGEN



Model Number: SV SVS SVL SVM, TU-JTK



Type: Spade Terminal, Spade Terminals



Color: Red Blue Black Yellow



Material of terminal: Copper



Certificate: ISO9001 SGS CE CQC



Sheath: PVC, Nylon, Heat-Shrinkable Tubes



Wire Size: 0.5-1.5mm 1.5-2.5mm 2.5-4mm 4-6mm



AWG: 22-16 16-14 14-12 12-10



Max Current: 19A 27A 37A 48A



Experiences of Manufacturer: More than 15 years



Wire Range	2.5-4.0mm2
A.W.G.	14-12
Max Current	37A





Item No	Stud size	Dimension(mm)						Color
		d2	B	L	F	H	Dφ
SV3.5-3	#4	3.2	5.7	24.8	7.0	13.0	6.2	Black
SV3.5-4	#8	4.3	8.0	24.8	7.0
SV3.5-5	#10	5.3	8.0	24.8	7.0
SV3.5-6	1/4	6.4	12.0	28.0	12.1
SV3.5-8	5/16	8.4	12.0	33.7	13.7
SV5.5-3.5	#6	3.7	8.3	25.2	7.5	13.0	6.7	Yellow
SVS5.5-4	#8	4.3	8.3	25.2	7.5
SVL5.5-4	#8	4.3	9.0	25.2	7.5
SV5.5-5	#10	5.3	9.0	25.2	7.5
SVS5.5-6	1/4	6.4	9.0	25.2	7.5
SVL5.5-6	1/4	6.4	12.0	31.2	12.0
SV5.5-8	5/16	8.4	14.0	30.0	11.5



---





Packing:



Our normal packing is 100 / 500pcs per bag, one bag in a box, outside by export carton.



We also can pack as customers' requirements.
