Tinned Eyelet Type Copper Cable Lugs SC / JGK Series Insulated Terminal Lugs

China Tinned Eyelet Type Copper Cable Lugs SC / JGK  Series Insulated Terminal Lugs supplier
Tinned Eyelet Type Copper Cable Lugs SC / JGK  Series Insulated Terminal Lugs supplier Tinned Eyelet Type Copper Cable Lugs SC / JGK  Series Insulated Terminal Lugs supplier

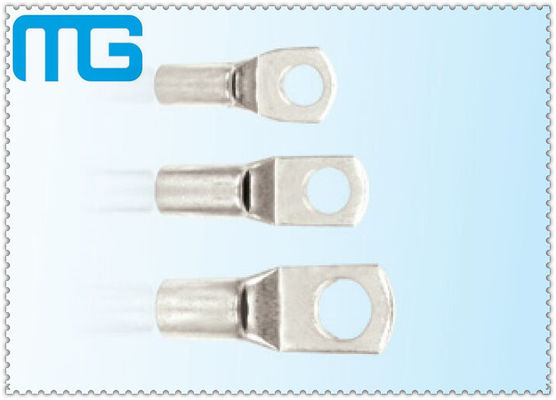

Large Image :  Tinned Eyelet Type Copper Cable Lugs SC / JGK Series Insulated Terminal Lugs

Product Details:

Place of Origin: WENZHOU, CHINA
Brand Name: MG MOGEN
Certification: CE, ROHS, ISO9001, SGS
Model Number: SC JGK

Payment & Shipping Terms:

Minimum Order Quantity: 1bags
Price: Price is negotiable
Packaging Details: bags and cartons, also could according customers' requirements to pack.
Delivery Time: 3-30 days, also according customers' purchase quantities.
Payment Terms: T/T or LC(big amount orders)
Supply Ability: 1000000pcs per week
Contact Now
Detailed Product Description
Another Name: Terminal Cable Lugs Body Material: Copper
Surface Plating: Tin Samples: Provide Free Samples
Wire Range: 1.5mm2 - 1000mm2 Total Length: 18mm - 200mm
High Light:

copper terminal lugs

,

electrical wire lugs

Tinned Eyelet Type Copper Cable Lugs SC / JGK Series Insulated Terminal Lugs

Headline:



Hot Sale SC(JGK) Series Tinned Eyelet Type Copper Tube Terminals Cable Lug



High Quality Tinned SC(JGK) Copper Cable Lug terminal lug types CE ROHS




Materials:



Terminal Body: Copper



Surface plating: Tin



Wire range: 1.5mm2 - 1000mm2



Total length: 18mm - 200mm


Specifications:

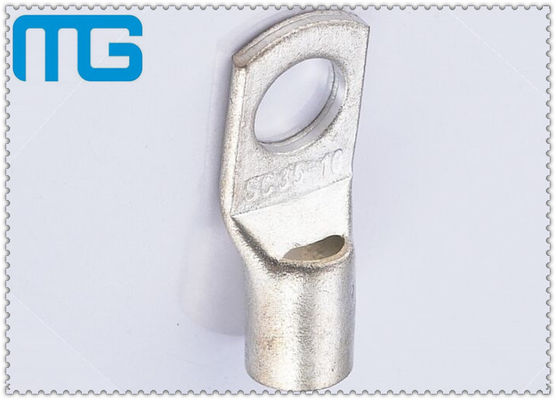

Tinned Eyelet Type Copper Cable Lugs SC / JGK  Series Insulated Terminal Lugs



Item No Dimension(mm)
φ D d L

SC(JGK)-1.5 φ4.2,φ5.2 3.5 1.8 18
SC(JGK)-2.5 φ4.2,φ5.2,φ6.2 4 2.5 19
SC(JGK)-4 φ5.2,φ6.2 4.8 3.1 21
SC(JGK)-6 φ5.2,φ6.2,φ8.2 5.5 3.8 24
SC(JGK)-10 φ6.2,φ8.2 6.8 4.8 25.5
SC(JGK)-16 φ6.2,φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGK)-25 φ6.2,φ8.2,Φ10.5 9 7 34
SC(JGK)-35 φ6.2,φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGK)-50 φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGK)-70 φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGK)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGK)-120 φ12.5,φ16.5 19.5 15.5 63
SC(JGK)-150 φ12.5,φ16.5 21 16.5 71
SC(JGK)-185 φ16.5 23.5 18.8 78
SC(JGK)-240 φ16.5 26.5 21 92
SC(JGK)-300 φ16.5,φ20.5 30 24 102
SC(JGK)-400 φ16.5,φ20.5 34 26.5 113
SC(JGK)-500 φ16.5,φ20.5 38 30 123
SC(JGK)-630 φ20.5 45 35 135
SC(JGK)-800 φ22.5 50 39 170
SC(JGK)-1000 φ22.5 56 44 200

FAQ:



1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue. Please contact us on line or send an Email to sending the catalogue.


2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it’s impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
