Nuts Wire End Caps Screw On Wire Connectors Spiral SP6 Connectors Blue Color
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Sprial SP6 Connectors | Sleeve Material: | PVC |
|---|---|---|---|
| Terminal Body: | Steel With Zn Plated | Sample: | Provide Free Samples |
| Color: | Blue | Item No: | SP4 |
| Highlight: | nylon quick disconnects,copper wire connectors |
||
Insulated Wire Connectors Nuts Wire End Caps / Screw On Wire Connectors
Feature :
- Wire connectors
- Industry standard twist on connector with top quality, performance and durability
- Color coded for easy size selection
- Tight, square wire spring makes quick and secure connections for positive continuity
- Tough, thermoplastic shell shields against environmental extremes
- There are not 5 of each color. 3 Gray, 4 Blue, 6 Orange, 6 Yellow, 6 Red Connectors

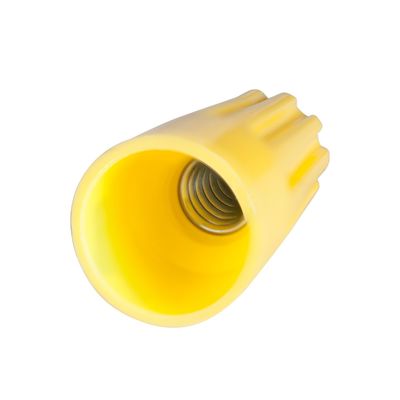

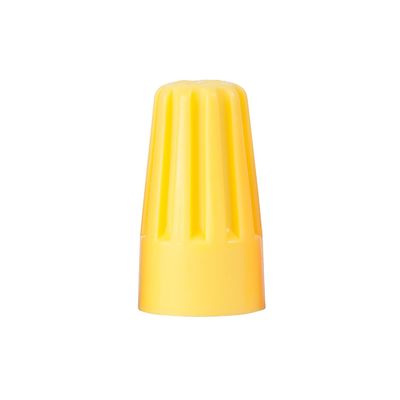

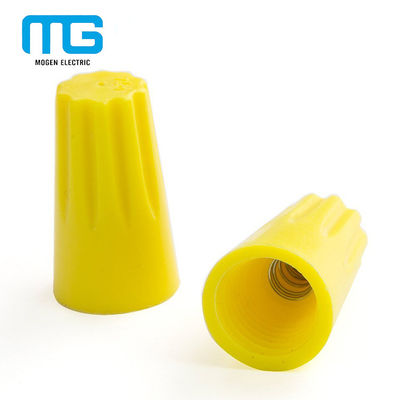

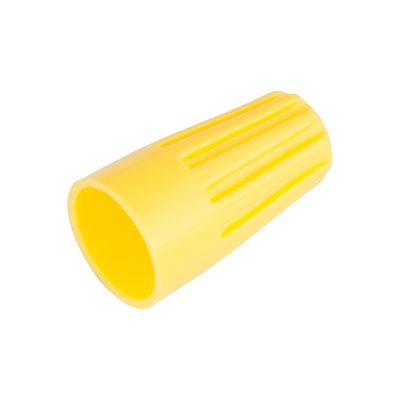

Tight, square-wire spring threads directly onto conductors for fast connections with no slip. Tightens without ratcheting, easily removed for repeat usage on same size combination or larger. Fluted shell surface permits a firm grip for easy finger-tight connections. Thermoplastic shell shields against environmental extremes. Flame-retardant properties resist heat distortion up to 221 degrees Fahrenheit. Superior flash-over protection. High-dielectric shell features deep skirt design to prevent exposure of bare wire. Buttress threads screw into wire insulation. For copper to copper connections only.
Packing Details:
Outer packing: export carton
Inner packing: 1000pcs / bag or as customer's requirement
Product Description:
| Materials | |
| Insulation | PVC |
| Terminal Body | Steel |
| Plating | Zn |
| Color | Red |
Material: PVC, threaded, heat-resistant and insulation.
Features: Put the joint of wires into the cap and screw if in until it is tight. Wall to secure the Cable.
High quality, Heat-resisting, Insulate well, Not apt to age, Reasonable price,
Environmental protective.
Application: Wire joining.
Color: gray red yellow blue orange and other colors are available as requested.
| Item No | Dimension(mm) | Wire range | Color | |||||
| A | B | C | ||||||
| SP1 | 6.70 | 8.60 | 15.20 | Min 0.75×1+0.5×1 Max 1.5×2 | Grey | |||
| SP2 | 7.40 | 9.80 | 17.60 | Min 0.75×3 Max 1.5×3 | Blue | |||
| SP3 | 9.90 | 12.70 | 22.00 | Min 0.75×3 Max 1.5×3+1×1 | Orange | |||
| SP4 | 11.20 | 14.00 | 24.60 | Min 0.25×1+0.75×1 Max 2.5×4+0.75×1 | Yellow | |||
| SP6 | 13.30 | 16.40 | 26.50 | Min 0.25×2 Max 6×2+4×2 | Red | |||
