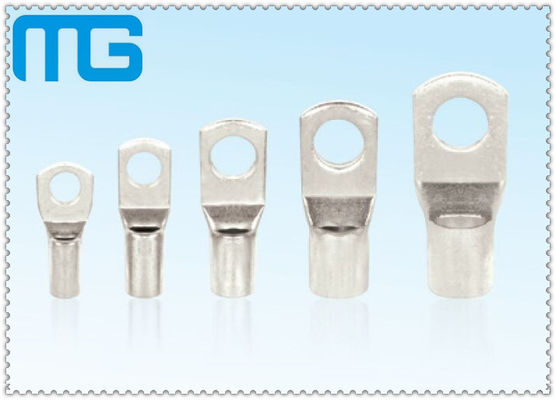

High Voltage Tinned Copper Cable Lugs 36KV 18mm - 200mm Length Ring Type Lugs

China High Voltage Tinned Copper Cable Lugs 36KV 18mm - 200mm Length Ring Type Lugs supplier

Large Image :  High Voltage Tinned Copper Cable Lugs 36KV 18mm - 200mm Length Ring Type Lugs

Product Details:

Place of Origin: WENZHOU, CHINA
Brand Name: MG MOGEN
Certification: CE, ROHS, ISO9001, SGS
Model Number: SC JGK

Payment & Shipping Terms:

Minimum Order Quantity: 1000bags
Packaging Details: bags and cartons, also could according customers' requirements to pack.
Delivery Time: 3-30 days, also according customers' purchase quantities.
Payment Terms: T/T or LC(big amount orders)
Supply Ability: 1000000pcs per week
Detailed Product Description
Another Name: Electrical Cable Lugs Body Material: Copper
Surface Plating: Tin Samples: Provide Free Samples
Wire Range: 1.5mm2 - 1000mm2 Total Length: 18mm - 200mm



Headline:



high voltage cable terminal-36KV copper terminal SC(JGK type) cable lugs


Materials:



Terminal Body: Copper



Surface plating: Tin



Wire range: 1.5mm2 - 1000mm2



Total length: 18mm - 200mm


Specifications:

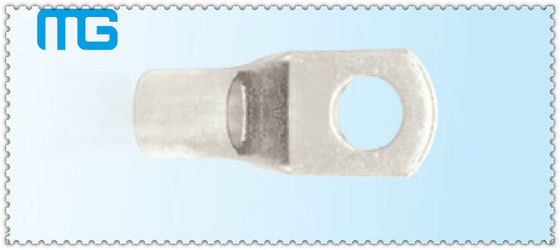

High Voltage Tinned Copper Cable Lugs 36KV 18mm - 200mm Length Ring Type Lugs



Item No Dimension(mm)
φ D d L

SC(JGK)-1.5 φ4.2,φ5.2 3.5 1.8 18
SC(JGK)-2.5 φ4.2,φ5.2,φ6.2 4 2.5 19
SC(JGK)-4 φ5.2,φ6.2 4.8 3.1 21
SC(JGK)-6 φ5.2,φ6.2,φ8.2 5.5 3.8 24
SC(JGK)-10 φ6.2,φ8.2 6.8 4.8 25.5
SC(JGK)-16 φ6.2,φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGK)-25 φ6.2,φ8.2,Φ10.5 9 7 34
SC(JGK)-35 φ6.2,φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGK)-50 φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGK)-70 φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGK)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGK)-120 φ12.5,φ16.5 19.5 15.5 63
SC(JGK)-150 φ12.5,φ16.5 21 16.5 71
SC(JGK)-185 φ16.5 23.5 18.8 78
SC(JGK)-240 φ16.5 26.5 21 92
SC(JGK)-300 φ16.5,φ20.5 30 24 102
SC(JGK)-400 φ16.5,φ20.5 34 26.5 113
SC(JGK)-500 φ16.5,φ20.5 38 30 123
SC(JGK)-630 φ20.5 45 35 135
SC(JGK)-800 φ22.5 50 39 170
SC(JGK)-1000 φ22.5 56 44 200

JGK Copper Connecting Terminals



1. Made by high purity copper
2. Tin plating:Corrosion Resistanc



Certificate IS09001, SGS,CE, CQC
Packing 100 pcs per bag, 5-20 bags in a box, 12-20 boxes in a carton carton size: 31*34*37 cm




Shipping:



1. We will ship the items within 5 working days after the payment is reached(small orders).



2. We ship to you by Express for small orders, such as DHL, FEDEX, UPS or TNT. For big orders, we could ship goods to you by Air and by Sea.



3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.



4. Any import fees or charges are the buyer's responsibility.
