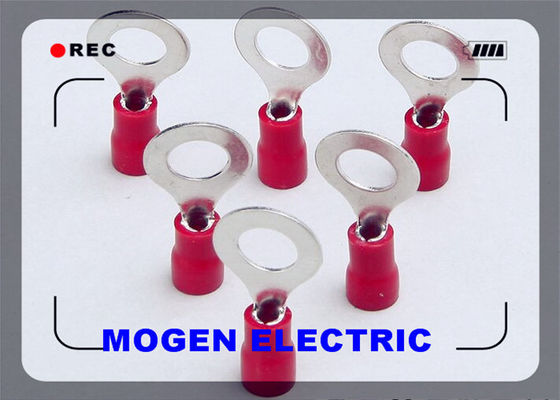

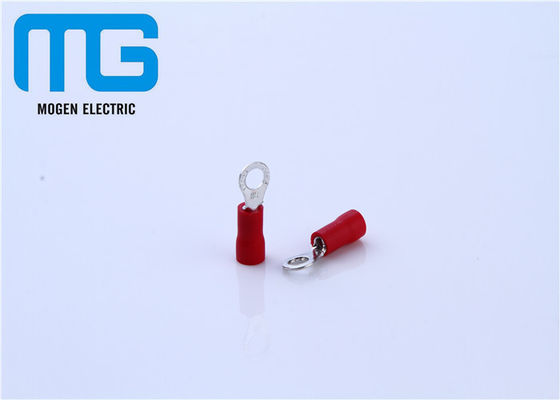

RV Good Quality Copper Ring Cord End Insulated Wire TerminalsConnector Easy Entry red
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Insulated Cor End Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5-1.5mm2, 1.5-2.5mm2, 2.5-4mm2, 4-6mm2 |
| Max Current: | 19A, 27A, 37A, 48A | Insulator Color: | Red Blue Black Yellow |
| High Light: | insulated crimp terminals,quick disconnect terminals |
||
RV Good Quality Copper Ring Cord End Insulated Wire TerminalsConnector Easy Entry red
|
1. 99.70% Pure copper RV 2-8 ring grounding terminals CE ROHS ISO9001 blue
|
|
2. RV 2-3.2 Insulated copper wire ring terminals ROHS approval CE
|
|
3. WENZHOU RV TYPE TU-JTK Pre-insulated Ring Terminal(Cable terminal)
|
|
4. Factory Supply copper terminal Ends insulated ring terminals RV TO-JTK RVS RVM
|
|
5. American Standard Specification RV Automotive Crimp Ring Terminal Lug Tin TU-JTK
|
100% Inspection
Standard Packing:
Inner packing: 100 or 1000 pcs / polybag
Outer packing: export carton 37cm * 37cm * 26.5cm
several bags in one box.
Pack as you demand.
|
Wire Range |
0.5-1.5mm2 |
|
A.W.G. |
22-16 |
|
Max Current |
19A |
Item No |
Stud size |
Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| RV1.25-3.2 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | Red |
| RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
| RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
| RVL1.25-3.5 | #6 | 3.7 | 8.0 | 21.5 | 7.0 | |||
| RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
| RVL1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||
| RVS1.25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||
| RVL1.25-5 | #10 | 5.3 | 9.8 | 23.0 | 8.5 | |||
| RVS1.25-6 | 1/4 | 6.4 | 9.8 | 23.0 | 8.5 | |||
| RV1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | |||
| RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
| RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | |||
| RV1.25-12 | 1/2 | 13.0 | 19.2 | 36.0 | 16.5 | |||
transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
Contact Us:
WENZHOU MOGEN ELECTRIC CO., LTD
Address: NO. 119 Xinguang Road, Xinguang Industrial Zone, Liushi Town, Yueqing City, Zhejiang Province, China.
Zip Code: 325604
Skype ID: 448778575@qq.com
Email : export7@mogen.cc
