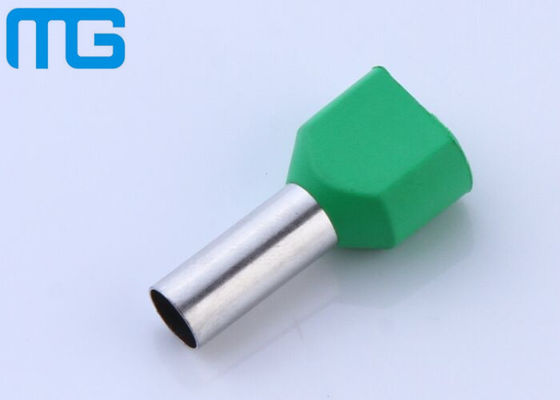

TE Series Nylon Insulated Wire Terminals Twin Cord End Copper Tube Red / Blue
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Black Double Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5 - 16mm2 |
| Color: | Red, Blue, Yellow, Black, Green, White And Grey | Material: | Copper With Tin Plated, PP |
| Highlight: | insulated crimp terminals,quick disconnect terminals |
||
TE Series Nylon Insulated Wire Terminals Twin Cord End Copper Tube Red / Blue
Headline:
TE Series Nylon Insulated Terminals twin cord end copper tube High quality low price
TE6014 TE crewel pre-insulated Wire Terminals Series Cord End Terminal
Wenzhou Mogen 100pcs/bag wire end TE terminals TE1008 electrical cable terminals
TE Series Nylon Insulated Terminals twin cord end copper tube High quality low price
Advantages:
|
Complete products: |
Insulate terminals, terminal block, etc 36 kinds of wiring accessories series |
|
Quality assurance: |
strict quality control before shipment |
|
High efficiency: |
Handling customer questions within 24 hours |
|
Increase customer utility: |
personal tracking, 3 to 10 days shipment after received payment |
Features:
Model : TE Series
-Application: help multi core wire connection to brass terminal or electrical applicant
-Usage: put the multi core wire into tube, then use the crimping tools to crimp, insert this cable shoes to brass terminal or electrical applicant
-Material: Copper / PVC / Brass
-Certification: ISO9001, RoHs, CE
-Features: Insulated, Easy to use
| Item No | Dimension(mm) | Wire range | French color |
German color |
Din color |
||||||
| F | L | W | B | Dφ | Cφ | A.W.G. | mm2 | ||||
| TE 0508 | 8.0 | 14.5 | 5.0 | 6.5 | 1.8 | 1.5 | 2×22 | 2×0.5 | White |
Orange |
White |
| TE 0510 | |||||||||||
| TE 7508 | 8.0 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | 2×20 | 2×0.75 | Blue |
White |
Grey |
| TE 7510 | 10.0 | 16.7 | |||||||||
| TE 1008 | 8.0 | 15.1 | 5.5 | 7.1 | 2.3 | 2.0 | 2×18 | 2×1.0 | Red |
Yellow |
Red |
| TE 1010 | 10.0 | 17.1 | |||||||||
| TE 1508 | 8.0 | 15.5 | 6.4 | 7.5 | 2.6 | 2.3 | 2×16 | 2×1.5 | Black |
Red |
Black |
| TE 1510 | 10.0 | 17.5 | |||||||||
| TE 1512 | 12.0 | 19.5 | |||||||||
| TE 2508 | |||||||||||
| TE 2510 | 10.0 | 18.5 | 8.0 | 8.5 | 3.3 | 2.9 | 2×14 | 2×2.5 | Grey |
Blue |
Blue |
| TE 2512 | 12.0 | 20.5 | |||||||||
| TE 2513 | 13.0 | 21.5 | |||||||||
| TE 4009 | |||||||||||
| TE 4012 | 12.0 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | 2×12 | 2×4 | Orange |
Grey |
Grey |
| TE 6014 | 14.0 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | 2×10 | 2×6 | Green |
Black |
Yellow |
| TE 10-14 | 14.0 | 26.6 | 12.6 | 12.6 | 6.9 | 6.5 | 2×8 | 2×10 | Brown |
Ivory |
Red |
| TE 16-14 | 14.0 | 31.3 | 19.0 | 17.3 | 8.7 | 8.6 | 2×6 | 2×16 | Ivory |
Green |
Blue |
