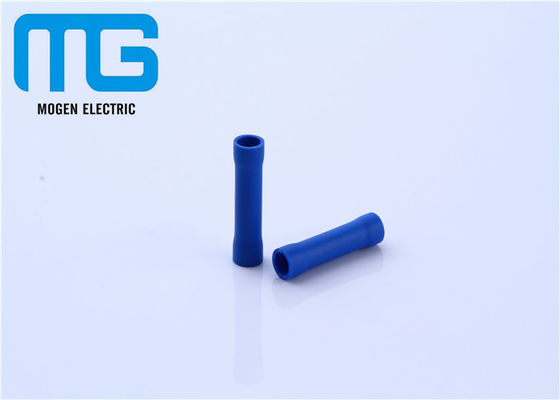

100pcs PVC blue Butt female insulated wire terminals Connector , power cable lug with avarious colors ,CE,
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Yellow Butt Connectors | Materials: | Copper And PVC |
|---|---|---|---|
| Samples: | Provide Free Samples | Certificate: | CE, ROHS, SGS, ISO9001 |
| Color: | Red, Blue, Yellow. | Wire Range: | 0.5-35 Mm2 |
| Application: | Power Cable | ||
| High Light: | wire quick disconnect,nylon quick disconnects |
||
100pcs PVC blue Butt female insulated wire terminals Connector , power cable lug with avarious colors ,CE,
Headline:
BV Series Butt Copper Wire Connector Insulated Terminal Blue ROHS SGS CE approval
High quality Electric TL-JTK connector joint wire for conductor range BV 1.25 - 38
100pcs PVC blue Butt female insulated wire terminals Connector , power cable lug with avarious colors ,CE,
MOGEN CE ROHS BV Series Heat Shrink Copper Insulated Butt Terminals & Connectors
Wenzhou Wholesalers Insulated Heat Shrink Red Butt Connector red BV
Full-insulating electrical connector TL-JTK BV with avarious colors
1.Materials:
Insulation: PVC
Terminal Body: Copper
Tin -plated
2.Packing Details:
Packing: Carton box with size is 37 * 31 * 34cm or 37 * 37 * 18cm, it depends on the goods.
Inner Packing: 100PCS/BAG
3.Shipping policy
Samples: 3-5days after confirming the specification
Bulk order 10-15 days after receiving your payment
Large order: 20-25days at least
Specifications
Max current: 19A 27A 37A 48A
Material: Nylon, PVC, Heat shrinkable tubes
AWG: 22-16 ,16-14 12-10 Inchs
Wire Size: 0.5-1.5mm,1.5-2.5mm,4-6mm
Item No |
Dimension(mm) | Wire range | Color |
|||||
| I | dφ | L | A.W.G. | mm2 | ||||
| BV1.25 | 15.0 | 1.7 | 26.0 | 22-16 | 0.5-1.5 | Red | ||
| BV2 | 15.0 | 2.3 | 26.0 | 16-14 | 1.5-2.5 | Bule | ||
| BV3.5 | ||||||||
| BV5.5 | 15.0 | 3.4 | 26.0 | 12-10 | 4-6 | Yellow | ||
| BV8 | 21.0 | 4.5 | 32.0 | 8 | 6-10 | Red | ||
| BV14 | 26.0 | 5.8 | 42.0 | 6 | 10-16 | Bule | ||
| BV22 | 29.0 | 7.7 | 50.0 | 4 | 16-25 | Yellow | ||
| BV38 | 32.0 | 9.4 | 55.0 | 2 | 25-35 | Red | ||
| Model No. | Insulated Butt Connectors |
| Item name | Pre-insualted cables middle joint |
| Color | Yellow green as photo, or OEM |
| Size | OEM |
| Wiring Capacity | as above list shows |
| Material | Red Copper |
| Conductor Size | OEM |
| Max current | OEM |
| Feature | Selected high quality copper and Environmental protection plastic process of stretching |
| Payment term |
A. Below US$300, western, paypal accepted |
| Certificate | CE / RoHS / CCC / CQC approved standard |
| Logo | Customized logo are available as request |
| Design ability | We can supply sample, OEM&ODM is welcome |
