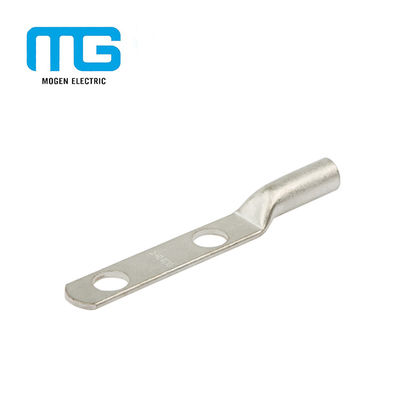

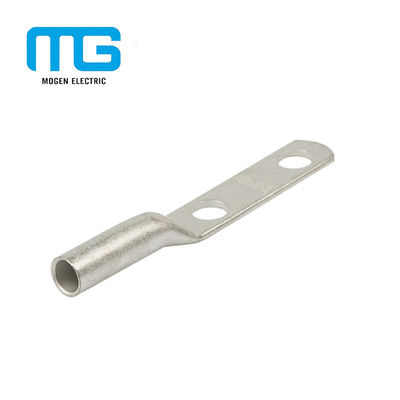

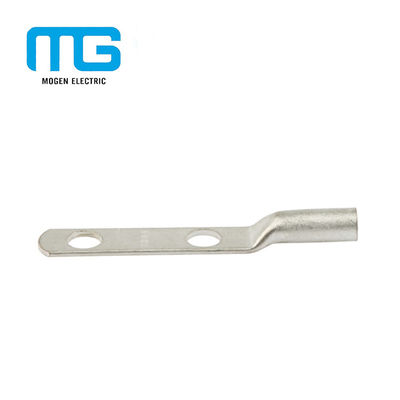

2 Hole Tinned Copper Cable Lugs , Battery Terminal Lugs For 300 Mm² Copper Conductors

Large Image : 2 Hole Tinned Copper Cable Lugs , Battery Terminal Lugs For 300 Mm² Copper Conductors

Product Details:

Place of Origin:	WENZHOU, CHINA
Brand Name:	MOGEN / MG
Certification:	CE, ROHS, ISO9001, SGS,TUV
Model Number:	MG-2H

Payment & Shipping Terms:

Minimum Order Quantity:	1bags
Price:	Price is negotiable
Packaging Details:	standard export packing
Delivery Time:	3-30 days, depending on purchase quantity
Payment Terms:	T/T or LC(big amount orders), Western Union
Supply Ability:	1000000pcs per week

Contact Now

Detailed Product Description

Another Name:	Copper Lugs	Body Material:	Pure Copper
Surface Plating:	Matt Tined	Samples:	Free Samples
Wire Range:	10mm2 - 800mm2	OEM/ODM:	Accept
High Light:	copper terminal lugs , electrical wire lugs

2 Hole Tinned Copper Cable lugs Battery Terminal Lug Compression Type For 300 mm² Copper Conductors

Headline:

MOGEN Cable Lugs are manufactured from 99.95% oxygen-free high conductivity copper tube and are electro tinned.

The materials are high quality copper, by vacuum annealing, better conductivity, ductility and low impedance;
The surface is smooth with high touch force;
The surface is tinned for corrosion protection and preventing the electronic effect;
Wire can be cremped or soldered to copper lug,widely used in electromobile, charging pile; electrical engineering, power system, distribution equipments, etc

Specifications:

2 Hole Tinned Copper Cable Lugs , Battery Terminal Lugs For 300 Mm² Copper Conductors

Item No	Dimension(mm)
	φ	D	d	L
SC(JGK)-1.5	φ4.2,φ5.2	3.5	1.8	18
SC(JGK)-2.5	φ4.2,φ5.2,φ6.2	4	2.5	19
SC(JGK)-4	φ5.2,φ6.2	4.8	3.1	21
SC(JGK)-6	φ5.2,φ6.2,φ8.2	5.5	3.8	24
SC(JGK)-10	φ6.2,φ8.2	6.8	4.8	25.5
SC(JGK)-16	φ6.2,φ8.2,Φ10.5	7.5	5.5	30.5
SC(JGK)-25	φ6.2,φ8.2,Φ10.5	9	7	34
SC(JGK)-35	φ6.2,φ8.2,Φ10.5,Φ12.5	10.5	8.2	38
SC(JGK)-50	φ8.2,Φ10.5,Φ12.5	12.5	9.8	45
SC(JGK)-70	φ8.2,Φ10.5,Φ12.5	14.5	11.5	50
SC(JGK)-95	Φ10.5,Φ12.5	17.5	13.8	55.5
SC(JGK)-120	φ12.5,φ16.5	19.5	15.5	63
SC(JGK)-150	φ12.5,φ16.5	21	16.5	71
SC(JGK)-185	φ16.5	23.5	18.8	78
SC(JGK)-240	φ16.5	26.5	21	92
SC(JGK)-300	φ16.5,φ20.5	30	24	102
SC(JGK)-400	φ16.5,φ20.5	34	26.5	113
SC(JGK)-500	φ16.5,φ20.5	38	30	123
SC(JGK)-630	φ20.5	45	35	135
SC(JGK)-800	φ22.5	50	39	170
SC(JGK)-1000	φ22.5	56	44	200

Transport:

Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).

Also, we can transport the goods by air or by sea(Quantity is big).

Packing:

2 Hole Tinned Copper Cable Lugs , Battery Terminal Lugs For 300 Mm² Copper Conductors

FAQ

1 Q:Do you have your own factory or just a trading company?

A: We have our R&D, producing, marketing and trading team, more than 200 employees in total. With 12 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.

2 Q: Could you change the size for the customer?

A: Yes, sizes can be customized, for more details please contact us.

3 Q: How many days delivery the order?

A: Normally after deposit or L/C 15 days,In case of urgent need, delivery date can be advanced depends on your request.

4 Q: Do you provide free sample?

A:Yes, Sample can be provided with freight charge to be collected.

5 Q: Do you accept OEM or ODM?

A:Yes, OEM and ODM are available, any legal logo can be printed on the product.

6 Q:How about the after-sale service?

A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
