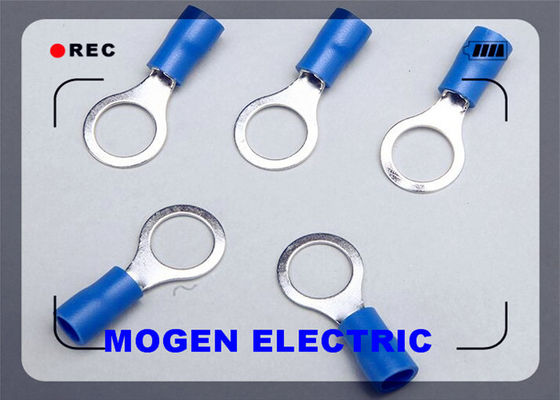

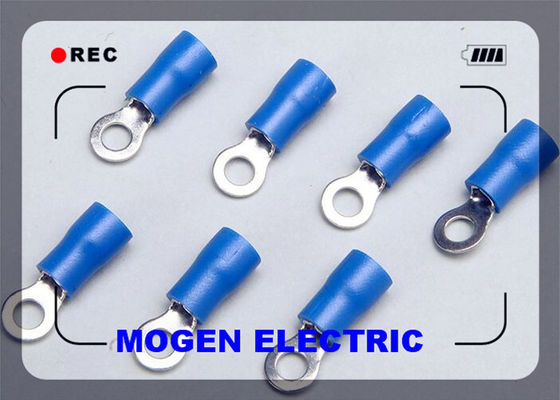

Best Cheap Conectors And Terminals RV Series Ring Shape RV Insulated Wire Terminals
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Ring Shape Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 1.5-2.5mm2 |
| Max Current: | 27A | Insulator Color: | Blue |
| High Light: | insulated pin terminal,quick disconnect terminals |
||
Best Cheap Conectors And Terminals RV Series Ring Shape RV Insulated Wire Terminals
Real Manufacturer
Free Samples
More than 15 years experience
100% Inspection
Can I have a sample for testing?
Yes, we can offer free sample, but you should afford the shipping cost.
Can I add my logo on the products?
Yes, OEM and ODM are available for us.
Standard Packing:
Inner packing: 100pcs / bag or as customer's requirement.
Outer packing: export carton with size is 37 ' 31 ' 34cm or 37 x 37 x 18cm,
it depends on the goods..
Descriptions:
1. Made by high purity copper r terminal north connection wire rope eye terminal ound terminal
2. Tin plating: Corrosion Resistance
3. Certificate: ISO9001 SGS CE CQC battery terminal cover
4. Color: Red Blue Black Yellow terminal north connection wire rope eye terminal
5. Type: TO-JTK
6. Thickness: 0.7mm 0.8mm 1.0mm
|
Wire Range
|
1.5-2.5mm2
|
|
A.W.G.
|
16-14
|
|
Max Current
|
27A
|
Item No |
Stud size |
Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| RV2-3.2 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Bule |
| RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
| RVM2-3.5 | #6 | 3.7 | 6.6 | 21.0 | 7.0 | |||
| RVL2-3.5 | #6 | 3.7 | 8.5 | 22.5 | 7.75 | |||
| RVS2-4 | #8 | 4.3 | 6.6 | 21.0 | 7.0 | |||
| RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
| RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.76 | |||
| RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1/4 | 6.4 | 12.0 | 27.6 | 11.0 | |||
| RV2-8 | 5/16 | 8.4 | 12.0 | 27.6 | 11.0 | |||
| RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | |||
| RV2-12 | 1/2 | 13.0 | 19.2 | 36.5 | 16.5 | |||
