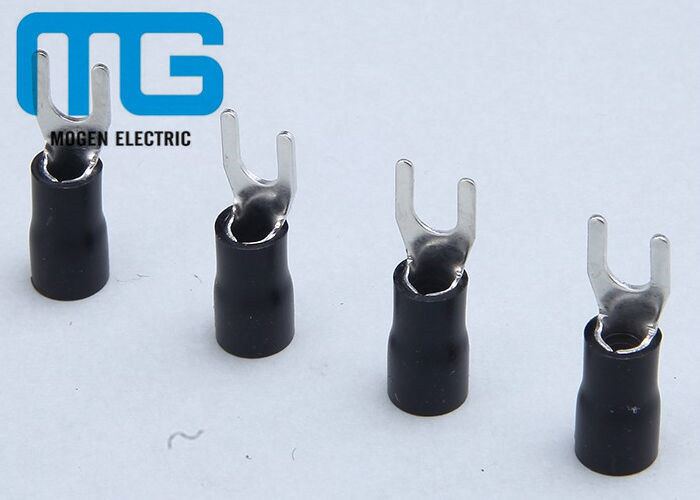

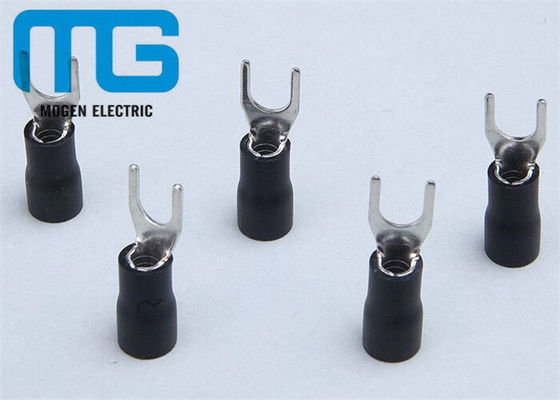

black SV3.5 copper electrical spade Insulated Wire Terminals Tin plated TU-JTK
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Black Wire Terminal | Terminal Body: | Copper |
|---|---|---|---|
| Plating: | Tin | Certificate: | ISO9001 CE ROHS SGS |
| Samples: | Provide Free Samples | ||
| High Light: | insulated crimp terminals,insulated pin terminal |
||
black SV3.5 copper electrical spade Insulated Wire Terminals Tin plated TU-JTK
|
MOGEN COMPANY INTRODUCE:
|
|
WENZHOU MOGEN COMPANY supply Non-insulated Spade Terminals Screw on Wire Connector Insulated
Hook Terminals, Closed-End Connectors, connector, cable connector, wire connector, insulated ring
terminals, fork pre-insulated terminals, pin pre-insulated terminals and pipe pre-insulated terminals. We can
provide good quality and good service with competitive prices. |
transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
Color: Red Blue Black Yellow
Material of terminal: Copper
Certificate: ISO9001 SGS CE CQC
Sheath: PVC, Nylon, Heat-Shrinkable Tubes
Wire Size: 0.5-1.5mm 1.5-2.5mm 2.5-4mm 4-6mm
AWG: 22-16 16-14 14-12 12-10
Max Current: 19A 27A 37A 48A
Experiences of Manufacturer: More than 15 years
| Wire Range | 2.5-4.0mm2 |
| A.W.G. | 14-12 |
| Max Current | 37A |
Item No |
Stud size |
Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| SV3.5-3 | #4 | 3.2 | 5.7 | 24.8 | 7.0 | 13.0 | 6.2 | Black |
| SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-5 | #10 | 5.3 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-6 | 1/4 | 6.4 | 12.0 | 28.0 | 12.1 | |||
| SV3.5-8 | 5/16 | 8.4 | 12.0 | 33.7 | 13.7 | |||
