Copper Insulated Wire Connectors Twist On Wire Connectors Tough Flame Retardant
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Sprial SP6 Connectors | Sleeve Material: | PVC |
|---|---|---|---|
| Terminal Body: | Steel With Zn Plated | Sample: | Provide Free Samples |
| Color: | Blue | Item No: | SP3 |
| High Light: | wire quick disconnect,copper wire connectors |
||

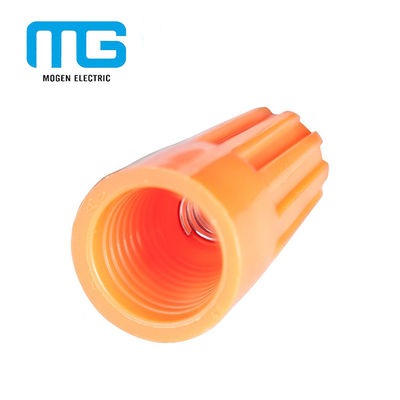

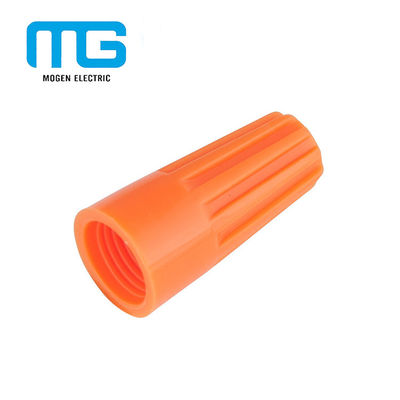

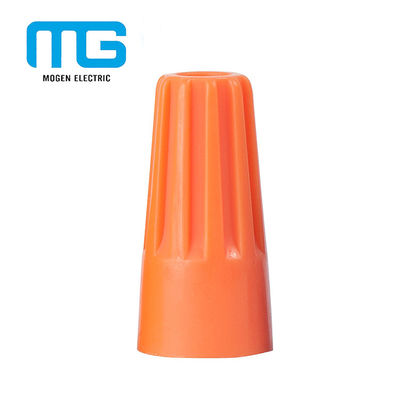

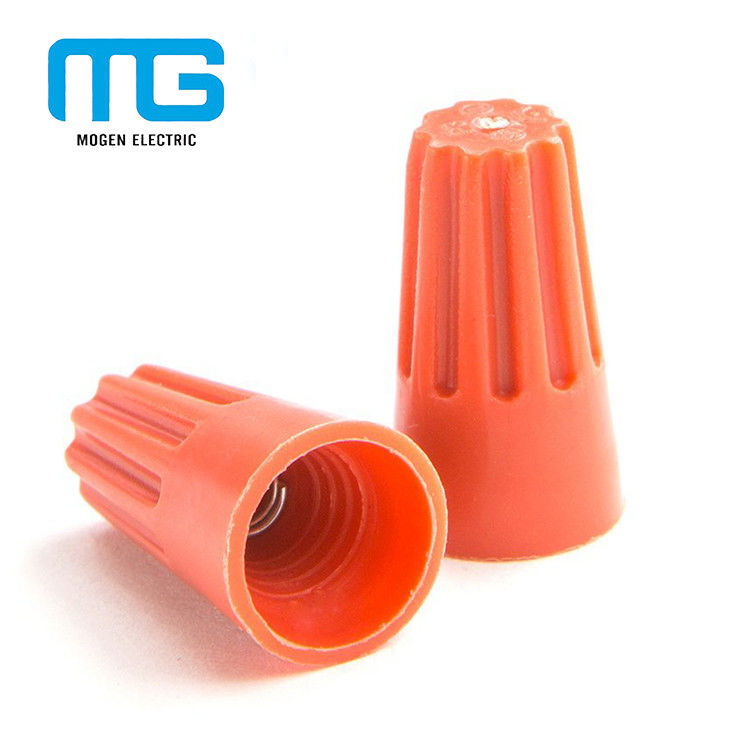

Twist On Wire Connectors Tough Flame-retardant Copper Insulated Wire Connectors
Headline:
Best price PVC plating Zn naked Screw-on wire connectors SP6 red color
Wire Connectors , Wire Joints , Screw On Wire Connector , Yellow color SP4
Wenzhou OEM Screw-on Wire Connector sprial SP3 orange Closed end connectors
Yueqing OEM Screw-on Wire Connectors About SP2 blue Closed end connectors
2017 hot sales high quality Assorted SP1 gray Screw on plastic wire connector
Hot selling multiple types screw-on insulated wire connectors PVC Steel plated Zn
Screw On Wire Connectors(quick wire connector)
Packing Details:
Outer packing: export carton
Inner packing: 1000pcs / bag or as customer's requirement
Product Description:
| Materials | |
| Insulation | PVC |
| Terminal Body | Steel |
| Plating | Zn |
| Color | Red |
Material: PVC, threaded, heat-resistant and insulation.
- Industry standard twist on connector with top quality, performance and durability
- Color coded for easy size selection
- Tight, square wire spring makes quick and secure connections for positive continuity
- Tough, thermoplastic shell shields against environmental extremes
- There are not 5 of each color. 3 Gray, 4 Blue, 6 Orange, 6 Yellow, 6 Red Connectors
Color: gray red yellow blue orange and other colors are available as requested.
| Item No | Dimension(mm) | Wire range | Color | |||||
| A | B | C | ||||||
| SP1 | 6.70 | 8.60 | 15.20 | Min 0.75×1+0.5×1 Max 1.5×2 | Grey | |||
| SP2 | 7.40 | 9.80 | 17.60 | Min 0.75×3 Max 1.5×3 | Blue | |||
| SP3 | 9.90 | 12.70 | 22.00 | Min 0.75×3 Max 1.5×3+1×1 | Orange | |||
| SP4 | 11.20 | 14.00 | 24.60 | Min 0.25×1+0.75×1 Max 2.5×4+0.75×1 | Yellow | |||
| SP6 | 13.30 | 16.40 | 26.50 | Min 0.25×2 Max 6×2+4×2 | Red | |||
MOGEN has own manufacture for more than 20 years of Specializing in various of terminals and connector.
As a professional manufacturer of terminals, we do good quality to cooperate with many countries, such as Russia, Brazil, US, Dubai and so on.
