Corrosion Resistance Copper Cable Lugs Tinned Electrical Wire Lugs For Wire Cutting
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Electrical Terminal Lugs | Body Material: | Copper |
|---|---|---|---|
| Surface Plating: | Tin | Samples: | Provide Free Samples |
| Wire Range: | 1.5mm2 - 1000mm2 | Total Length: | 18mm - 200mm |
| High Light: | cable terminal lugs,electrical wire lugs |
||

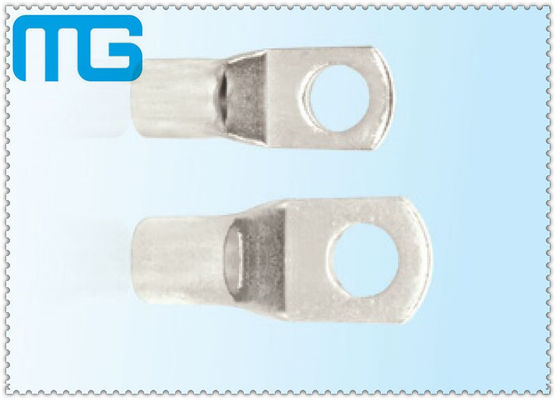

Corrosion Resistance Copper Cable Lugs Tinned Electrical Wire Lugs For Wire Cutting
Headline:
High Quality Tinned SC(JGK) Copper Cable Lug terminal lug types CE ROHS
SC(JGK) 240mm Connecting Terminal Cable Lugs Types Copper Terminal Lugs
Materials:
Terminal Body: Copper
Surface plating: Tin
Wire range: 1.5mm2 - 1000mm2
Total length: 18mm - 200mm
Specifications:
| Item No | Dimension(mm) | |||||||
| φ | D | d | L | |||||
| SC(JGK)-1.5 | φ4.2,φ5.2 | 3.5 | 1.8 | 18 | ||||
| SC(JGK)-2.5 | φ4.2,φ5.2,φ6.2 | 4 | 2.5 | 19 | ||||
| SC(JGK)-4 | φ5.2,φ6.2 | 4.8 | 3.1 | 21 | ||||
| SC(JGK)-6 | φ5.2,φ6.2,φ8.2 | 5.5 | 3.8 | 24 | ||||
| SC(JGK)-10 | φ6.2,φ8.2 | 6.8 | 4.8 | 25.5 | ||||
| SC(JGK)-16 | φ6.2,φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 | ||||
| SC(JGK)-25 | φ6.2,φ8.2,Φ10.5 | 9 | 7 | 34 | ||||
| SC(JGK)-35 | φ6.2,φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 | ||||
| SC(JGK)-50 | φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 | ||||
| SC(JGK)-70 | φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 | ||||
| SC(JGK)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 | ||||
| SC(JGK)-120 | φ12.5,φ16.5 | 19.5 | 15.5 | 63 | ||||
| SC(JGK)-150 | φ12.5,φ16.5 | 21 | 16.5 | 71 | ||||
| SC(JGK)-185 | φ16.5 | 23.5 | 18.8 | 78 | ||||
| SC(JGK)-240 | φ16.5 | 26.5 | 21 | 92 | ||||
| SC(JGK)-300 | φ16.5,φ20.5 | 30 | 24 | 102 | ||||
| SC(JGK)-400 | φ16.5,φ20.5 | 34 | 26.5 | 113 | ||||
| SC(JGK)-500 | φ16.5,φ20.5 | 38 | 30 | 123 | ||||
| SC(JGK)-630 | φ20.5 | 45 | 35 | 135 | ||||
| SC(JGK)-800 | φ22.5 | 50 | 39 | 170 | ||||
| SC(JGK)-1000 | φ22.5 | 56 | 44 | 200 | ||||
Grantee:
1. 7*24 hours online service
----your request will be solved in time.
2. One year quality grantee
----products using can be protected.
Our Advantage:
----Long time working on Terminals made us the best.
1. Factory sells directly
2. Long-term, strong and steady supplying ability
3. Delivery time: within 7 working days
4. Do as your requirements on package, brand or other designs
5. Tin Plating: Corrosion Resistance
6. Wire Cutting: No shedding, no burrs, more stronger
