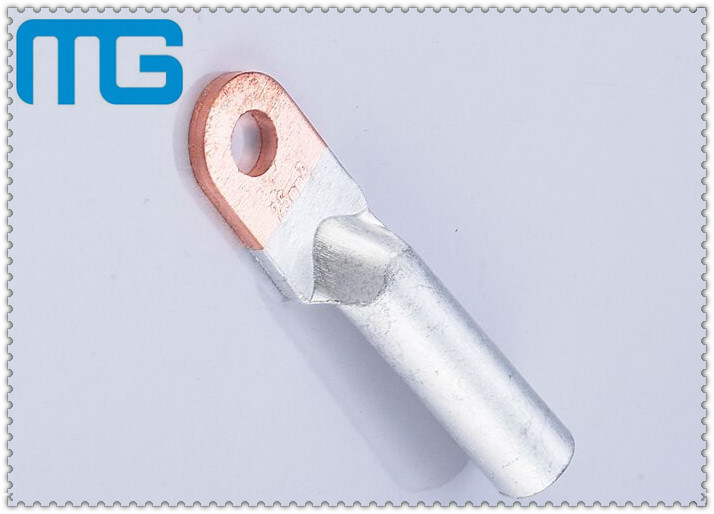

DTL-1 Bimetallic Connecting Terminals , Copper Cable Lugs Aluminium 10mm2 16mm2
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Bimetallic DTL-1 | Body Material: | Copper And Aluminium |
|---|---|---|---|
| Surface Color: | Original Copper And Aluminium Color | Samples: | Provide Free Samples |
| Wire Range: | 10mm2 - 800mm2 | Total Length: | 68mm - 270mm |
| High Light: | cable terminal lugs,electrical wire lugs |
||
DTL-1 Bimetallic Connecting Terminals , Copper Cable Lugs Aluminium 10mm2 16mm2
Headline:
DTL-1 Bimetallic Connecting Terminals , Copper Cable Lugs Aluminium 10mm2 16mm2
hot sale DTL-1 type Cu-Al bimetal terminal lug / cable lugs connector
Non-insulated Copper Aluminum Cable Terminal DTL-1 Series Lugs 10mm2 800mm2
High Quality DTL-1 series connecting cable terminal lugs copper aluminium CE
Copper Aluminium Connecting Terminal (DTL-1 Type) DTL-1-10-800mm2 CE ISO9001
Materials:
Terminal Body: Copper + Aluminium
Surface plating: nothing(original copper and aluminium color)
Wire range: 10mm2 - 800mm2
Total length: 68mm - 270mm
Specifications:
Item No |
Dimension(mm) | |||||||
| φ | D | d | L | L1 | B | |||
| DTL-1-10 | 8.5 | 10 | 6 | 62 | 28 | 16 | ||
| DTL-1-16 | 8.5 | 11 | 6 | 68 | 30 | 16 | ||
| DTL-1-25 | 8.5 | 12 | 7 | 70 | 33 | 18 | ||
| DTL-1-35 | 10.5 | 14 | 8.5 | 80 | 36 | 20.5 | ||
| DTL-1-50 | 10.5 | 16 | 9.8 | 85 | 38 | 23 | ||
| DTL-1-70 | 12.5 | 18 | 11.5 | 95 | 43 | 26 | ||
| DTL-1-95 | 12.5 | 21 | 13.5 | 104 | 46 | 28 | ||
| DTL-1-120 | 14.5 | 23 | 15 | 112 | 49 | 30 | ||
| DTL-1-150 | 14.5 | 25 | 16.5 | 120 | 51 | 34 | ||
| DTL-1-185 | 16.5 | 27 | 18.5 | 125 | 55 | 37 | ||
| DTL-1-240 | 16.5 | 30 | 21 | 136 | 60 | 40 | ||
| DTL-1-300 | 21 | 34 | 23.5 | 155 | 66 | 50 | ||
| DTL-1-400 | 21 | 38 | 27 | 170 | 75 | 50 | ||
| DTL-1-500 | 21 | 47 | 29 | 190 | 75 | 60 | ||
| DTL-1-630 | 21 | 54 | 35 | 220 | 85 | 80 | ||
| DTL-1-800 | 21 | 60 | 38 | 260 | 85 | 100 | ||
Grantee:
1. 7*24 hours online service
----your request will be solved in time.
2. One year quality grantee
----products using can be protected.
3. 100% after sales service
----we’ll be together with you for all questions.
FAQ:
1. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it’s impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
2. Q: Can you provide samples ? Are the samples free ?
"A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cost. If you need many items, or need more qty for each item,
we will charge for the samples."
