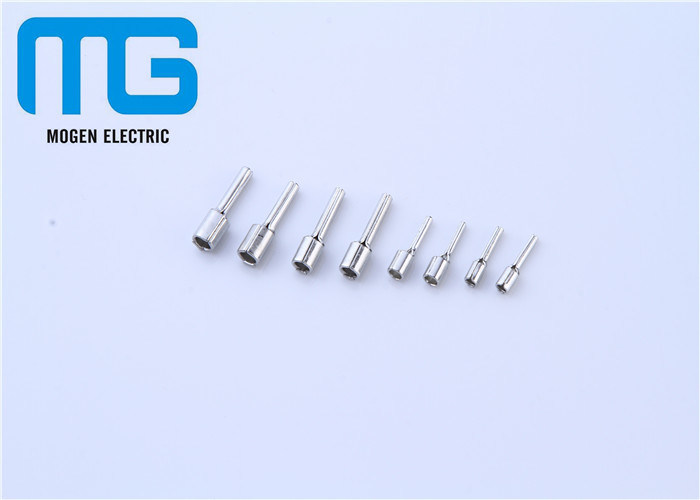

Durable Electrical Non Insulated Terminals Copper Naked Pin Terminals PVC
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Non-insulated Naked Terminal | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5-1.5mm2, 1.5-2.5mm2, 2.5-4mm2, 4-6mm2 |
| Max Current: | 19A 27A 37A 48A | Material: | Copper With Tin Plated, PVC |
| High Light: | brass spade terminals,tin plated terminals |
||
Durable Electrical Non Insulated Terminals Copper Naked Pin Terminals PVC
Factory Supply Plating Tin Copper Non-insulated Pin Terminals
Free Samples
1. How long is the delivery time?
It depends on the quantity.
For samples or regular items in small qty ,we promise to sent in 1-3 days. Most have in stock.
For mass production, such like 20ft container we promise to sent in 15-30 days.
Packing Details:
Inner packing: 100PCS / BAG OR AS CUSTOMER'S REQUIREMENT
Outer packing: export carton
Our factory also could pack the goods according customers' requirements.
2. Certificate: ISO9001 SGS CE CQC
|
Wire Range
|
0.5-1.5mm2, 1.5-2.5mm2, 2.5-4mm2, 4-6mm2
|
|
A.W.G.
|
22-16 16-14 14-12 12-10
|
|
Max Current
|
19A 27A 37A 48A
|
Item No |
Dimension(mm) | |||||||
| F | L | H | Dφ | dφ | ||||
| PTN1.25-9 | 1.9 | 13.8 | 4.8 | 3.4 | 1.7 | |||
| PTN1.25-10 | 1.9 | 14.8 | ||||||
| PTN1.25-12 | 1.9 | 16.8 | ||||||
| PTN1.25-13 | 1.9 | 17.8 | ||||||
| PTN1.25-18 | 1.9 | 22.8 | ||||||
| PTN2-9 | 1.9 | 13.8 | 4.8 | 4.1 | 2.3 | |||
| PTN2-10 | 1.9 | 14.8 | ||||||
| PTN2-12 | 1.9 | 16.8 | ||||||
| PTN2-13 | 1.9 | 17.8 | ||||||
| PTN2-18 | 1.9 | 22.8 | ||||||
| PTN3.5-10 | 2.8 | 14.8 | 6.0 | 5.0 | 3.0 | |||
| PTN3.5-13 | 2.8 | 19.8 | ||||||
| PTN5.5-13 | 2.8 | 19.8 | 6.0 | 5.6 | 3.4 | |||
| PTN5.5-18 | ||||||||
