FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors

Certification
Good quality Non Insulated Terminals for sales
Good quality Non Insulated Terminals for sales
perfect quality, good sales.

—— Wilder Cruz Torres

nice supplier, on time shipping, thank you

—— Bello Aliyu

a wonderful cooperation, goods are good too.

—— Dogan Kanstiy

very good prices, thanks dave, expect next cooperation.

—— pradeep kumar rathore

I'm from Australia, good job Dave, thank you

—— maurice kezic

got my products, they are very good.

—— Ronesh Prasad

fast delivery and good after -sales service

—— martin

I'm Online Chat Now

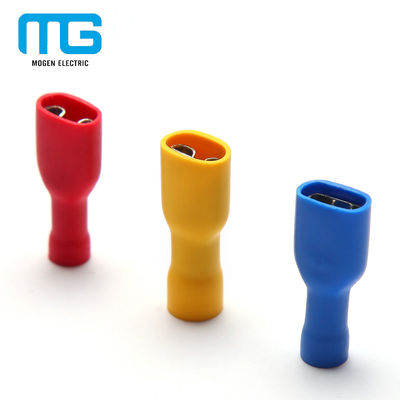

FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors

China FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors supplier
FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors supplier FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors supplier FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors supplier FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors supplier

Large Image :  FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors

Product Details:

Place of Origin: CHINA
Brand Name: MOGEN
Certification: CE ROHS ISO9001
Model Number: FDFD2

Payment & Shipping Terms:

Minimum Order Quantity: 100bags
Price: Price is negotiable
Packaging Details: 100pcs/bags
Delivery Time: 3-30day
Payment Terms: T/T,L/C,Paypal
Supply Ability: 10000bags/day
Contact Now
Detailed Product Description
Another Name: Female Disconnect Certificate: ISO9001 ROHS CE SGS
Samples: Free Samples Wire Range: 0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2
Max Current: 10A 15A 24A Material: Brass With Tin Plated, PVC
High Light:

wire crimp terminals

,

insulated female disconnects



       FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors



Product Description:


1. Made by Brass


2. Tin plating


3. Certificate: ISO9001 SGS CE CQC


4. Color: Red BlueYellow


5. Type: FDFD


6. Thickness: 0.7mm 0.8mm 1.0mm



Quality: 100% Inspection



Payment:



Payment Term A. L/C, T/T (Bank Transfer, Wire Transfer)
B. Western Union
C.Paypal  (For samples fee & Courier cost)
Terms of Payment: FOB Shanghai / Ningbo; CIF; CNF; etc



Packing:



A. Common Packing: 1000PC + inner box +Label+ export carton
B. Customized Packing: OEM Label, PDQ etc



Diagrammatic Drawing And Data Sheet Of MPD tinning bullet Insulated Male Disconnects :







Wire Range



0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2



A.W.G.



22-16 16-14 12-10



Max Current



10A 15A 24A







FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors




Item No
(mm)
Nema Tab
Dimension(mm)
Color
B L

FDFD1.25-110(5) 0.5×2.8 3.8 1.7 3.8 20.0 Red
FDFD1.25-110(8) 0.8×2.8 3.8 1.7 3.8 20.0
FDFD1.25-187(5) 0.5×4.75 5.6 1.7 3.8 20.0
FDFD1.25-187(8) 0.8×4.75 5.6 1.7 3.8 20.0
FDFD1.25-250 0.8×6.35 7.4 1.7 3.8 21.5
FDFD2-110(5) 0.5×2.8 3.8 2.3 4.3 20.0 Bule
FDFD2-110(8) 0.8×2.8 3.8 2.3 4.3 20.0
FDFD2-187(5) 0.5×4.75 5.6 2.3 4.3 22.0
FDFD2-187(8) 0.8×4.75 5.6 2.3 4.3 22.0
FDFD2-250 0.8×6.35 7.4 2.3 4.3 24.0
FDFD5.5-187(5) 0.5×4.8 5.6 3.4 5.7 23.8 Yellow
FDFD5.5-250 0.8×6.35 7.4 3.4 5.7 25.5
FDFD5.5-375 1.2×9.4 10.9 3.4 5.7 30.0


FDFD Fully Insulated Female Disconnects , Cable Crimping Female Terminal Connectors
-------------------------------------------------------------------------
transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
-------------------------------------------------------------------------
Packing:
Our normal packing is 100pcs per bag, one bag in a box, outside by export carton.
We also can pack as customers' requirements.
-------------------------------------------------------------------------
