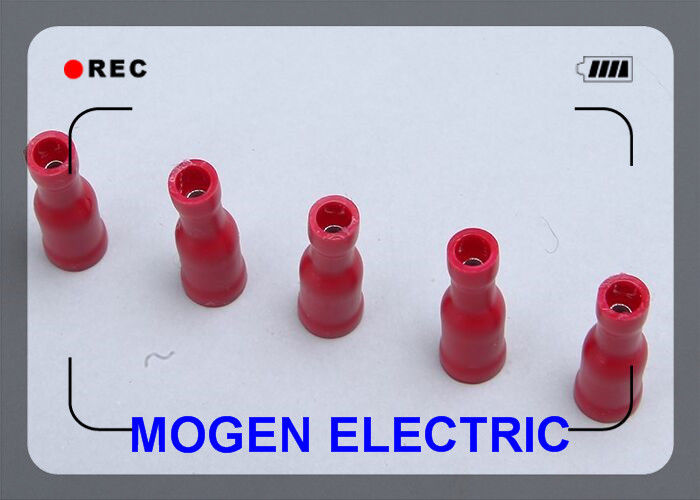

FRD Bullet Female Electrical Quick Disconnect Tinned Copper Insulated Connector
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | FRD Quick Female Disconnects | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2 |
| Color: | Red Blue Yellow | Material: | Brass With Tin Plated, PVC |
| High Light: | insulated female disconnects,plastic wire connectors |
||
Headline:
FRD Bullet Female Electrical Quick Disconnect Tinned Copper Insulated Connector
Insulated receptacle disconnects Pre-insulated Joint terminals MPD accessories
Position plating tin multiple types PVC insulated bullet female disconnects
Products Parameters:
Wire Range: 0.5-1.5mm & 1.5-2.5mm & 4-6mm A.W.G: 22-16 & 16-14 & 12-10 Max Current: 10A & 15A & 24A
Sample time: Free Samples Within 48 Hours
Material: Copper, Nylon, PVC, Brass
Color: Red, Yellow, Blue
Application: Wire Connection
Business Type of terminal: Manufacturer, OEM,ODM
Quality: 100% Inspection
Packing Details:
Inner packing: 1000pcs / poly bag Outer packing: export carton 37cm*37cm*26.5cm
Diagrammatic Drawing And Data Sheet Of MPD tinning bullet Insulated Male Disconnects :
FAQ
1. Could i put my own logo on it?
> Sure, of course,we have over 18 years OEM experience,customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2. Should i pay extra for logo printing ?
> If you order amount over out MOQ for OEM package,all OEM fees would be free,if you want to make a trial order,we need to charge a very little fees for the printing and cartons.
3. How about the quality?
We import DU POND brand PA66 nylon raw material from USA,we make sure good quality from the most important factor.
> Acquire the CE & FDA Certification.
> 100% QC in produce process and before package.
|
Wire Range
|
0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2
|
|
A.W.G.
|
22-16 16-14 12-10
|
|
Max Current
|
10A 15A 24A
|
Item No |
Dimension(mm) | Color |
||||||
| dφ | F | Dφ | H | L | ||||
| FRD1.25-156 | 4.0 | 6.3 | 1.7 | 13.0 | 24.0 | Red |
||
| FRD1.25-176 | 4.5 | 6.3 | 1.7 | 13.0 | 24.0 | |||
| FRD2-156 | 4.0 | 6.3 | 2.3 | 14.0 | 24.5 | Bule |
||
| FRD2-176 | 4.5 | 6.3 | 2.3 | 14.0 | 24.5 | |||
| FRD2-195 | 5.0 | 7.0 | 2.3 | 14.0 | 24.5 | |||
| FRD5.5-195 | 5.0 | 7.0 | 3.4 | 14.0 | 29.5 | Yellow |
||
