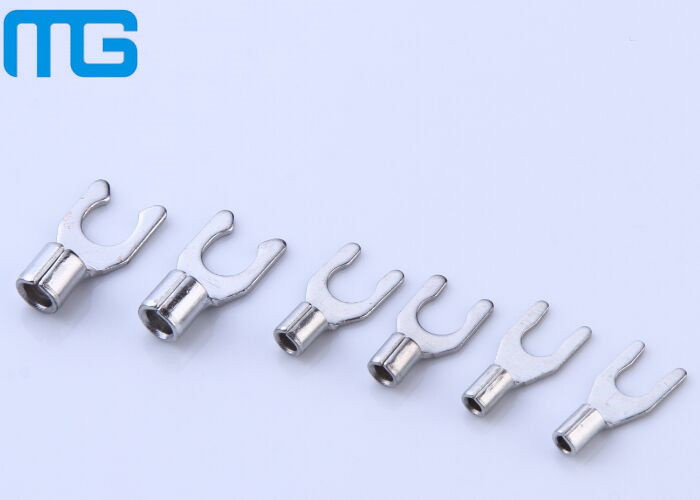

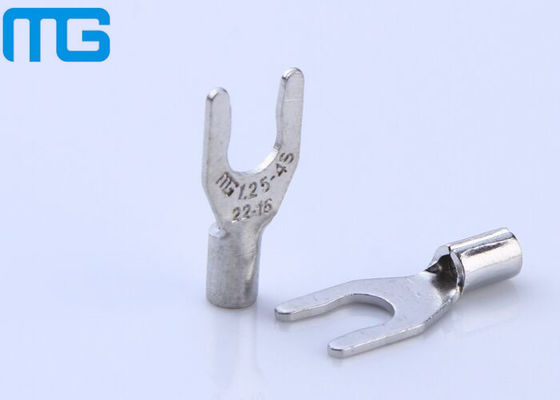

Free Samples Non Insulated Terminals Locking Spade Terminal For Industrial LSNB
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Non-insulated EN Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5-6 Mm2 |
| A.W.G.: | 22-10 | Material: | Copper With Tin Plated |
| High Light: | brass spade terminals,copper ring terminals |
||
Headline:
Free Samples Non Insulated Terminals Locking Spade Terminal For Industrial LSNB
Packing Details:
Standard Packing:
Inner packing: 100 or 1000 pcs/polybag
Outer packing: export carton 37cm*37cm*26.5cm
several bags in one box.
Pack as customers' demand.
The following is showed in detail about this product:
| Wire Range |
0.5-1.5 mm2 |
| A.W.G. |
22-16 |
| Max Current |
19A |
| Item No | Stud size | Dimension(mm) | ||||||
| d2 | B | F | L | E | Dφ | dφ | ||
| LSNB1.25-3.5 | #6 | 3.7 | 6.4 | 6.5 | 16.0 | 4.8 | 3.4 | 1.7 |
| LSNBS1.25-4 | #8 | 4.3 | 7.2 | |||||
| LSNBL1.25-4 | #8 | 4.3 | 8.1 | |||||
| LSNBS1.25-5 | #10 | 5.3 | 8.1 | |||||
| LSNBL1.25-5 | #10 | 5.3 | 9.5 | |||||
| Wire Range |
1.5-2.5 mm2 |
| A.W.G. |
16-14 |
| Max Current |
27A |
| Item No | Stud size | Dimension(mm) | ||||||
| d2 | B | F | L | E | Dφ | dφ | ||
| LSNB2-3.5 | #6 | 3.7 | 6.0 | 6.5 | 16.0 | 4.8 | 4.1 | 2.3 |
| LSNBS2-4 | #8 | 4.3 | 7.2 | |||||
| LSNBL2-4 | #8 | 4.3 | 8.1 | |||||
| LSNBS2-5 | #10 | 5.3 | 8.1 | |||||
| LSNBL2-5 | #10 | 5.3 | 9.5 | |||||
| Wire Range |
4-6 mm2 |
| A.W.G. |
12-10 |
| Max Current |
48A |
| Item No | Stud size | Dimension(mm) | ||||||
| d2 | B | F | L | E | Dφ | dφ | ||
| LSNB5.5-3.5 | #6 | 3.7 | 8.3 | 7.5 | 19.5 | 6.0 | 5.6 | 3.4 |
| LSNB5.5-4 | #8 | 4.3 | 8.3 | |||||
| LSNB5.5-5 | #10 | 5.3 | 9.0 | |||||
| LSNB5.5-6 | 1/4 | 6.4 | 12.0 | 12.0 | 24.5 |
|||
Warranty:
Warranty is available based on the following points:
1. The terminal guaranteed for one year.
2. If the item you purchase from our company are not of perfected quality, that is they don't work electronically t o manufacturers specifications, simply return them to us for replacement or refund.
3. If the items is defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the return shipping cost incurred.
FAQ:
1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it’s impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
3. Q: I can’t find the product on your catalogue, can you make this product for me?
"A: Our catalogue shows most of our products, but not all. So just let us know what product do you need,
and how many do you want. If we do not have it, we can also design and make a new mould to produce
it. For your reference, making a ordinary mould will take about 30days."
4. Q : Can you make customized products and customized packing?
A: Yes. We made a lot of customized products for our customer before. And we have many moulds for our customers already. About customized packing, we can put your Logo or other info on the packing. There is no problem. Just have to point out that ,it will cause some additional cost.
