Product Details:
Payment & Shipping Terms:
|
Another Name: | Insulated Butt Connectors | Materials: | Copper And PVC |
---|---|---|---|
Samples: | Provide Free Samples | Certificate: | CE, ROHS, SGS, ISO9001 |
Color: | Red, Blue, Yellow. | Wire Range: | 0.5-35 Mm2 |
High Light: | wire quick disconnect,nylon quick disconnects |

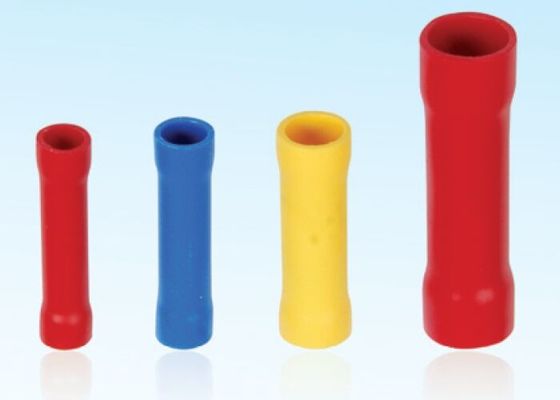

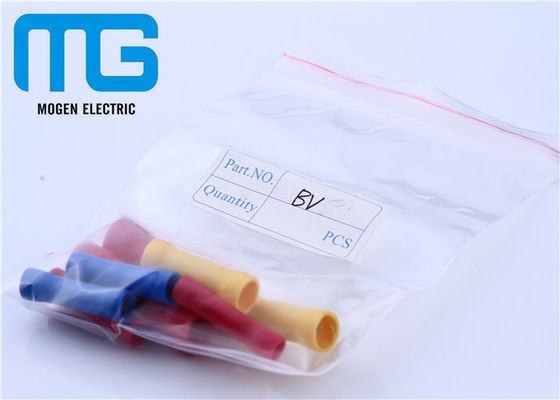

Fully Insulated BV Copper Vinyl Insulated Butt Insulated Wire Connectors Free Samples OEM
Headline:
Free Sample Cheap Full Insulated BV Copper Vinyl Insulated Butt Connector
MOGEN CE ROHS BV Series Heat Shrink Copper Insulated Butt Terminals & Connectors
Materials:
Insulation: PVC
Terminal Body: Copper
Plating: Tin
Product Specifications:
vinyl insulated butt splice connectors
butt splice connectors
Certification: ISO9001, CE, RoHS
Material: COPPER
Insulation: PVC
Parallel Connector
Insulation: PVC which have passed SGS
Copper : high density copper
Surface: Double - tin plated
Type: Standard
Butt connector
Insulation: PVC which have passed SGS
Copper : high desitiny
Surface: Double - tin plated
Type: Standard
Item No |
Dimension(mm) | Wire range | Color |
|||||
I | dφ | L | A.W.G. | mm2 | ||||
BV1.25 | 15.0 | 1.7 | 26.0 | 22-16 | 0.5-1.5 | Red | ||
BV2 | 15.0 | 2.3 | 26.0 | 16-14 | 1.5-2.5 | Bule | ||
BV3.5 | ||||||||
BV5.5 | 15.0 | 3.4 | 26.0 | 12-10 | 4-6 | Yellow | ||
BV8 | 21.0 | 4.5 | 32.0 | 8 | 6-10 | Red | ||
BV14 | 26.0 | 5.8 | 42.0 | 6 | 10-16 | Bule | ||
BV22 | 29.0 | 7.7 | 50.0 | 4 | 16-25 | Yellow | ||
BV38 | 32.0 | 9.4 | 55.0 | 2 | 25-35 | Red |
Shipping:
Samples: will be prepared within three days.
Bulk order: around one week.
Large order: 20-25 days will be OK.
Model No. | Insulated Butt Connectors |
Item name | Pre-insualted cables middle joint |
Color | Yellow green as photo, or OEM |
Size | OEM |
Wiring Capacity | as above list shows |
Material | Red Copper |
Conductor Size | OEM |
Max current | OEM |
Feature | Selected high quality copper and Environmental protection plastic process of stretching |
Payment term |
A. Below US$300, western, paypal accepted |
Certificate | CE / RoHS / CQC approved standard |
Logo | Customized logo are available as request |
Design ability | We can supply sample, OEM & ODM is welcome |
Features:
Cable end sleeve/ferrule is also known and copper nose which is terminal by crimping on cable/wire/
electrical equipment without thermal treatment.It is a kind of accessories for electrical connections.UTL
supplies a wide range of cable end sleeves to satisfy different demand with premium quality.There must
be one meets your criteria
FAQ:
1. we are derectly manufacturer of terminals and connectors
2. we supply 2 years gurantee for goods
3. we supply free samples
4. we supply OEM service
