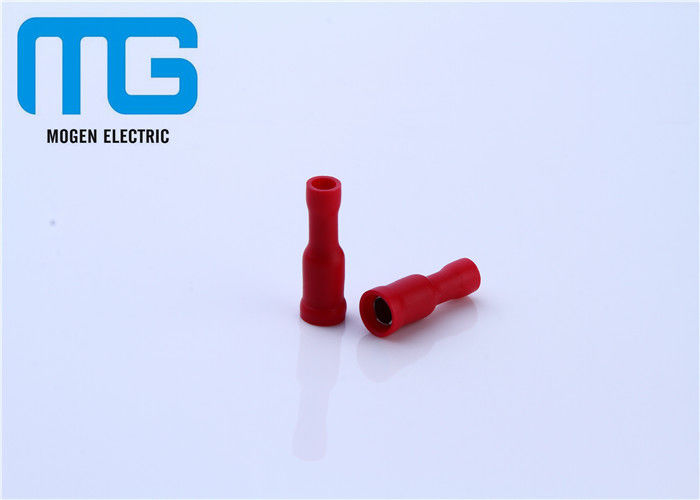

Insulated Receptacle Electrical Connector Terminal Pre Insulated Joint Terminals

Insulated receptacle Electrical Quick Disconnect Pre-insulated Joint terminals MPD accessories



Headline:



Position plating tin multiple types PVC insulated bullet female disconnects



Factory supply PVC electrical terminal insulated bullet female disconnects with ROHS



FRD FULLY INSULATED RECEPTACLE DISCONNECTORS ELECTRIC QUICK DISCONNECTS



Wholesale FRD Auto insulated female bullet connector brass quick disconnects



Descriptions:



99.9% High Purity Cooper



All material are Envirometal .



Offer Free Samples



Certificates : RoHS SGS CE ISO9001



Enough stock to fit your urgently need.



Perfect package according to your demand.



Product can be made accurately by your design and demand.



We have our own design team, own mold workshop and injection moulding workshop.



Products Parameters:



Wire Range: 0.5-1.5mm² & 1.5-2.5mm² & 4-6mm²



A.W.G: 22-16 & 16-14 & 12-10



Max Current: 10A & 15A & 24A



Sample time: Free Samples Within 48 Hours



Material: Copper, Nylon, PVC, Brass



Color: Red, Yellow, Blue



Application: Wire Connection



Business Type of terminal: Manufacturer, OEM, ODM



Quality: 100% Inspection



Packing Details:



Inner packing: 1000pcs / poly bag



Outer packing: export carton 37cm * 37cm * 26.5cm



Diagrammatic Drawing And Data Sheet Of MPD tinning bullet Insulated Male Disconnects :





Wire Range	0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2
A.W.G.	22-16 16-14 12-10
Max Current	10A 15A 24A



Item No	Dimension(mm)							Color
	dφ	F	Dφ	H		L
FRD1.25-156	4.0	6.3	1.7	13.0		24.0		Red
FRD1.25-176	4.5	6.3	1.7	13.0		24.0
FRD2-156	4.0	6.3	2.3	14.0		24.5		Bule
FRD2-176	4.5	6.3	2.3	14.0		24.5
FRD2-195	5.0	7.0	2.3	14.0		24.5
FRD5.5-195	5.0	7.0	3.4	14.0		29.5		Yellow
