Product Details:
Payment & Shipping Terms:
|
Another Name: | Cable Lugs | Body Material: | Pure Copper |
---|---|---|---|
Surface Plating: | Tined | Samples: | Free Samples |
Wire Range: | 10mm2 - 800mm2 | Total Length: | 18mm - 200mm |
High Light: | cable terminal lugs,copper terminal lugs |

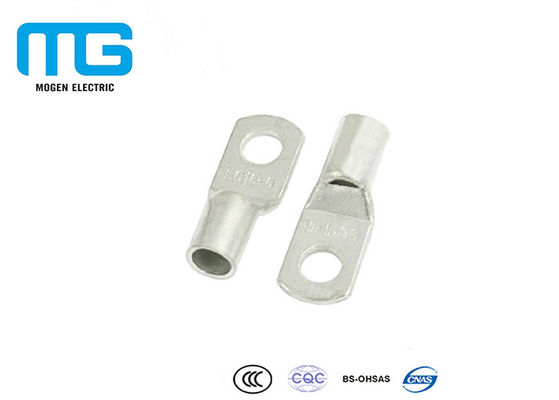

JGK Type Power Copper Cable Lugs , Copper Connecting Terminals
Headline:
1. The JGK series copper cable lugs are suitable for the connection of copper conductors(section 10-800mm2)in power cable with electronic equiqment.
2. the cable lugs are made of with higher 99.9 percent pute copper tube T2 and coated with tin.
3. Working temperature-55℃-150℃.
Materials:
Terminal Body: Pure Copper
Surface plating: Tin
Wire range: 10mm2 - 800mm2
Total length: 16mm - 100mm
Specifications:
Item No | Dimension(mm) | |||||||
φ | D | d | L | |||||
SC(JGK)-1.5 | φ4.2,φ5.2 | 3.5 | 1.8 | 18 | ||||
SC(JGK)-2.5 | φ4.2,φ5.2,φ6.2 | 4 | 2.5 | 19 | ||||
SC(JGK)-4 | φ5.2,φ6.2 | 4.8 | 3.1 | 21 | ||||
SC(JGK)-6 | φ5.2,φ6.2,φ8.2 | 5.5 | 3.8 | 24 | ||||
SC(JGK)-10 | φ6.2,φ8.2 | 6.8 | 4.8 | 25.5 | ||||
SC(JGK)-16 | φ6.2,φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 | ||||
SC(JGK)-25 | φ6.2,φ8.2,Φ10.5 | 9 | 7 | 34 | ||||
SC(JGK)-35 | φ6.2,φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 | ||||
SC(JGK)-50 | φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 | ||||
SC(JGK)-70 | φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 | ||||
SC(JGK)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 | ||||
SC(JGK)-120 | φ12.5,φ16.5 | 19.5 | 15.5 | 63 | ||||
SC(JGK)-150 | φ12.5,φ16.5 | 21 | 16.5 | 71 | ||||
SC(JGK)-185 | φ16.5 | 23.5 | 18.8 | 78 | ||||
SC(JGK)-240 | φ16.5 | 26.5 | 21 | 92 | ||||
SC(JGK)-300 | φ16.5,φ20.5 | 30 | 24 | 102 | ||||
SC(JGK)-400 | φ16.5,φ20.5 | 34 | 26.5 | 113 | ||||
SC(JGK)-500 | φ16.5,φ20.5 | 38 | 30 | 123 | ||||
SC(JGK)-630 | φ20.5 | 45 | 35 | 135 | ||||
SC(JGK)-800 | φ22.5 | 50 | 39 | 170 | ||||
SC(JGK)-1000 | φ22.5 | 56 | 44 | 200 |
Transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
Packing:
FAQ
1 Q:Do you have your own factory or just a trading company?
A: We have our R&D, producing, marketing and trading team, more than 200 employees in total. With 12 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.
2 Q: Could you change the size for the customer?
A: Yes, sizes can be customized, for more details please contact us.
3 Q: How many days delivery the order?
A: Normally after deposit or L/C 15 days,In case of urgent need, delivery date can be advanced depends on your request.
4 Q: Do you provide free sample?
A:Yes, Sample can be provided with freight charge to be collected.
5 Q: Do you accept OEM or ODM?
A:Yes, OEM and ODM are available, any legal logo can be printed on the product.
6 Q:How about the after-sale service?
A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
