Product Details:
Payment & Shipping Terms:
|
Another Name: | Red Spade Terminals | Certificate: | ISO9001 ROHS CE SGS |
---|---|---|---|
Samples: | Provide Free Samples | Wire Range: | 0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2 |
Max Current: | 19A 27A 48A | Material: | Copper With Tin Plated, PVC |
Highlight: | insulated crimp terminals,insulated pin terminal |

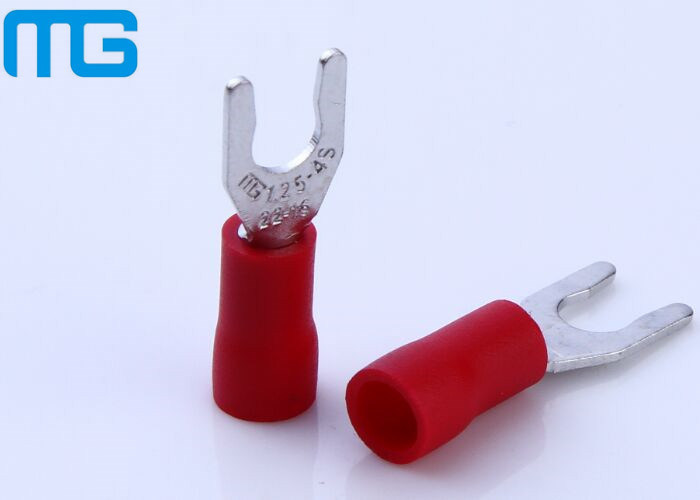

LSV Insulated Double Crimp Insulated Wire Terminals , Spade Battery PVC Red Spade Terminal
Headline:
Hot sale LSV insulated double crimp terminals spade battery PVC pure copper red
Factory supply LSV insulated double crimp spade terminals locking type
100% Inspection
Free Samples
Packing Details:
Inner packing: 100 or 1000 pcs / polybag,
several bags in one box.
Outer packing: export carton 37cm * 37cm * 26.5cm. 8 -12 boxes in one carton. .
Also we could pack the goods according customers' requirements.
Specifications:
LSV Insulated locking spade terminal
1. Certifications: ISO9001 SGS CE CQC
2. Material: copper
3. Color: red, blue, yellow
Product Description:
Usage | Insulated locking Spade Terminals |
Feature | High Quality |
Material | Copper with Tin plated, PVC |
Color | Red, Blue, Yellow |
Packaging | Factory satndard packing or Pack as customers' requests |
Alibaba Trade Assurance Suppliers | Yes |
Certification | CE SGS ROHS ISO9001 |
Payment methods: | T/T, Western Union, Paypal, Alipay, Credit Card. |
Shipping port | Ningbo or ShangHai |
Wire Range |
0.5-1.5 mm2 |
A.W.G. |
22-16 |
Max Current |
19A |
Item No | Stud size | Dimension(mm) | Color |
|||||
d2 | B | L | F | H | Dφ | |||
LSV1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
LSVS1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
LSVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
LSVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
LSVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 |
We also can supply high quality terminal connectors,plug terminals,such as:
a. insulated ring terminal
b. Non-insulated ring terminal
c. Insulated spade terminals
d. Non-insulated spade terminals
e. Terminal insulation
f. Insulated female disconnects
g. Shoulder shaped male and female joints
h. Insulated female disconnects
i. Insulated flange spade terminals
j. Insulated locking spade terminals
k. Hook terminals
l. Flag shape female insulated joints and so on.
