Product Details:
Payment & Shipping Terms:
|
Another Name: | Silver Connectors | Materials: | Copper With Tin Plated |
---|---|---|---|
Samples: | Provide Free Samples | Type: | Butt Round Shape |
Wire Ragne: | 0.5mm2 - 300mm2 | A.W.G.: | 600MCM - 22 |
High Light: | uninsulated butt connectors,automotive butt connectors |

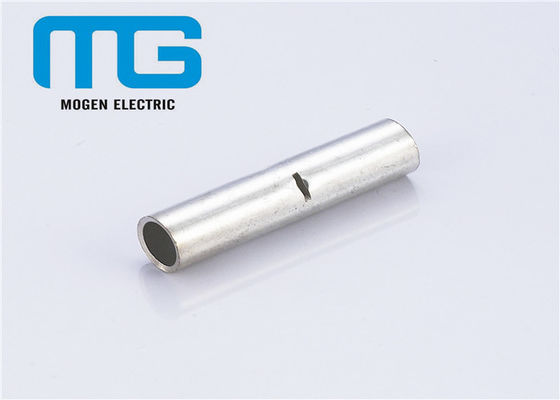

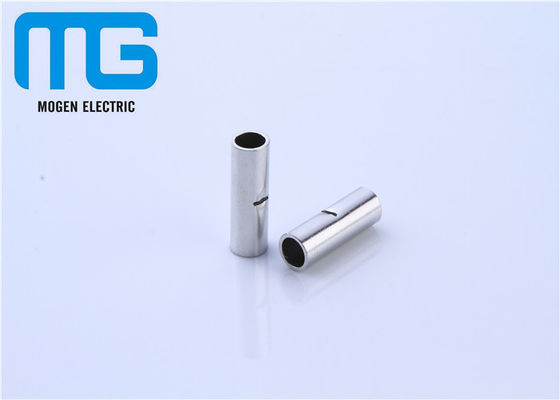

Non Insulated Connectors connection wire terminals Butt Connectorswith Tin-plated copper ,different sizes available
Headline:
High Quality BN 1.25-325 Copper Tin Plated Wire connect Non-Insulated Butt Terminal
Non-Insulated spade disconnects , Butt Connectors Splices with AWG 16-
Specifications:
wire connector Non-Insulated Butt Connectors
1. Material: purple COPPER electric quick connectors
2. Certificate: ISO9001 SGS CE CQC electric supplies
4. Color: Silver
5. Type: BN
6. OEM and ODM allowed
Item No |
Dimension(mm) | Wire range | ||||||
I | dφ | L | A.W.G. | mm2 | ||||
BN1.25 | 1.7 | 3.3 | 15.0 | 22-16 | 0.5-1.5 | |||
BN2 | 2.3 | 3.9 | 15.0 | 16-14 | 1.5-2.5 | |||
BN3.5 | 3.0 | 5.0 | 15.0 | 14-12 | 2.5-4 | |||
BN5.5 | 3.4 | 5.4 | 15.0 | 12-10 | 4-6 | |||
BN8 | 4.6 | 7.0 | 21.0 | 8 | 6-10 | |||
BN14 | 5.9 | 8.9 | 26.0 | 6 | 10-16 | |||
BN22 | 7.8 | 11.3 | 29.0 | 4 | 16-25 | |||
BN38 | 9.5 | 13.2 | 32.0 | 2 | 25-35 | |||
BN60 | 11.4 | 15.3 | 36.0 | 1/0 | 35-50 | |||
BN70 | 13.3 | 17.5 | 37.0 | 2/0 | 50-70 | |||
BN80 | 14.5 | 19.5 | 38.0 | 3/0 | 70-95 | |||
BN100 | 16.4 | 22.1 | 38.0 | 4/0 | 95-120 | |||
BN150 | 19.5 | 26.4 | 54.0 | 250/300MCM | 150 | |||
BN180 | 21.0 | 28.5 | 57.0 | 300/350MCM | 185 | |||
BN200 | 24.0 | 32.4 | 63.0 | 400/500MCM | 240 | |||
BN325 | 28.0 | 37.0 | 72.0 | 500/600MCM | 300 | |||
PNT1.25 | 1.7 | 3.3 | 8.0 | 22-16 | 0.5-1.5 | |||
PNT2 | 2.3 | 4.0 | 8.0 | 16-14 | 1.5-2.5 | |||
PNT5.5 | 3.4 | 5.4 | 8.5 | 12--10 | 4-6 |
Packaging & Delivery:
1.Inner packing: 100pcs/bag s packing. or as customer's requirement.
Outer packing: Standard export carton
2. Delivery Detail: Within 7-10 days upon receipt of your payment
FAQ:
1. Are you the manufacturer ?
We are the manufacturer.
2. What is MOQ?
We can accept MOQ first time
3. How long is the delivery time?
It depends on the quantity.
A few goods, we promise to sent in 1-3 days. Most have in stock.
A big order, we will sent in 15-30 days.
4. Which shipping method do you provide?
A few goods will be sent by express.
A big order can be sent by air or by sea, just according to your demand.
5. Which payment terms is available?
T/T westion ,paypal ,moneygram
6. How can we get the samples? Is it free?
We provide free samples through courrier but you should pay the freight of the samples if possible
7. How about the price?
We are the manufacturer and we have a competitive price.
8.How about the quality?
Accordance with international standards.
