Non - Insulated Copper Cable Lugs 1.5mm2 Wire Range SC JGA Series Free Samples
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | JGA Wire Copper Lugs | Body Material: | Copper |
|---|---|---|---|
| Surface Plating: | Tin | Samples: | Provide Free Samples |
| Wire Range: | 1.5mm2 - 1000mm2 | Total Length: | 18mm - 200mm |
| High Light: | copper terminal lugs,electrical wire lugs |
||

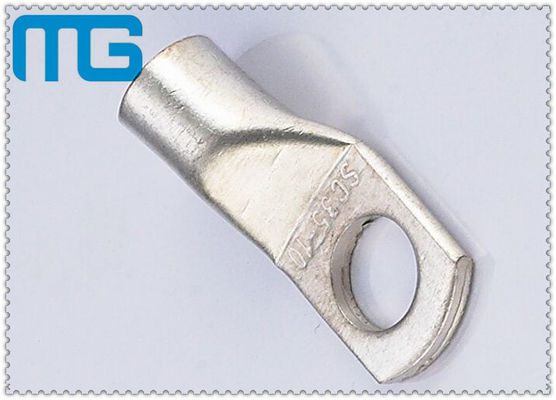

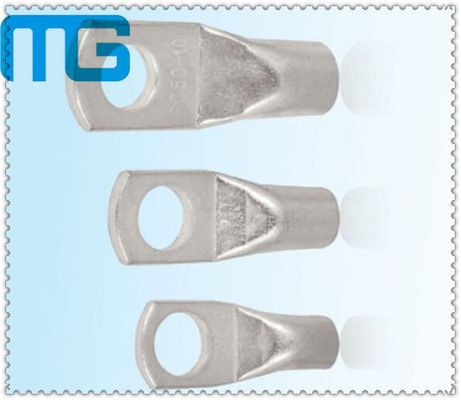

Non - Insulated Copper Cable Lugs 1.5mm2 Wire Range SC JGA Series Free Samples
Headline:
Non-insulated Copper Terminal SC JGA Series copper cable lugs 1.5mm2 SGS
SC JGA imported tinned electrical copper cable lugs tube crimp connecting terminals
Materials:
Terminal Body: Copper
Surface plating: Tin
Wire range: 1.5mm2 - 1000mm2
Total length: 18mm - 200mm
Specifications:
Item No |
Dimension(mm) | |||||||
| φ | D | d | L | |||||
| SC(JGA)-1.5 | φ4.2,φ5.2 | 3.5 | 1.8 | 18 | ||||
| SC(JGA)-2.5 | φ4.2,φ5.2,φ6.2 | 4 | 2.5 | 19 | ||||
| SC(JGA)-4 | φ5.2,φ6.2 | 4.8 | 3.1 | 21 | ||||
| SC(JGA)-6 | φ5.2,φ6.2,φ8.2 | 5.5 | 3.8 | 24 | ||||
| SC(JGA)-10 | φ6.2,φ8.2 | 6.8 | 4.8 | 25.5 | ||||
| SC(JGA)-16 | φ6.2,φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 | ||||
| SC(JGA)-25 | φ6.2,φ8.2,Φ10.5 | 9 | 7 | 34 | ||||
| SC(JGA)-35 | φ6.2,φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 | ||||
| SC(JGA)-50 | φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 | ||||
| SC(JGA)-70 | φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 | ||||
| SC(JGA)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 | ||||
| SC(JGA)-120 | φ12.5,φ16.5 | 19.5 | 15.5 | 63 | ||||
| SC(JGA)-150 | φ12.5,φ16.5 | 21 | 16.5 | 71 | ||||
| SC(JGA)-185 | φ16.5 | 23.5 | 18.8 | 78 | ||||
| SC(JGA)-240 | φ16.5 | 26.5 | 21 | 92 | ||||
| SC(JGA)-300 | φ16.5,φ20.5 | 30 | 24 | 102 | ||||
| SC(JGA)-400 | φ16.5,φ20.5 | 34 | 26.5 | 113 | ||||
| SC(JGA)-500 | φ16.5,φ20.5 | 38 | 30 | 123 | ||||
| SC(JGA)-630 | φ20.5 | 45 | 35 | 135 | ||||
| SC(JGA)-800 | φ22.5 | 50 | 39 | 170 | ||||
| SC(JGA)-1000 | φ22.5 | 56 | 44 | 200 | ||||
FAQ:
1. Q: What kind of payment do you accept ? Can I pay RMB ?
"A: We accept T/T(Wire transfer), Western Union and Paypal. Please be sure that we can receive the
same amount of the Invoice. And you can pay money In RMB. No problem."
2. Q: Can you provide samples ? Are the samples free ?
"A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cost. If you need many items, or need more qty for each item,
we will charge for the samples."
3. Q : Can you provide Certificate of Origin?
A: Yes, Sure. We can offer it. And it's free.
"Any requirements or question, welcome to "Send" us an e-mail Now---- dave@mogen.cc
It's our great honor to do services for you! You also can get the FREE SAMPLES soon."
