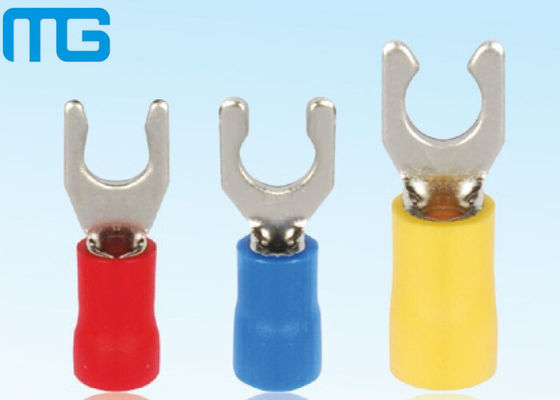

Pre - Insulating Locking Spade Insulated Wire Terminals LSV LSVL LSVS T23 - Copper With Tin Plated
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Locking Spade Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2 |
| Max Current: | 19A 27A 48A | Material: | Copper With Tin Plated, PVC |
| High Light: | insulated crimp terminals,quick disconnect terminals |
||
Pre - Insulating Locking Spade Insulated Wire Terminals LSV LSVL LSVS T23 - Copper With Tin Plated
Headline:
T23-Copper lock spade pre-insulating terminal LSV LSVL LSVS Lock fork terminals
Factory supply LSV insulated double crimp spade terminals locking type
100% Inspection
Free Samples
Products Datasheet:
OEM: Available
Samples: Free of Charge
Certificate: ISO900 CE, ROHS
Application: Quick Splice Connectors
Delivery time: depends on the quantity you order
Maximum Electrical Rating: 75°C 600 Volts Max
Insulation Material: Vinyl (PVC)
Product Description:
| Usage | Insulated locking Spade Terminals |
| Feature | High Quality |
| Material | Copper with Tin plated, PVC |
| Color | Red, Blue, Yellow |
| Packaging | Factory satndard packing or Pack as customers' requests |
| Alibaba Trade Assurance Suppliers | Yes |
| Certification | CE SGS ROHS ISO9001 |
| Payment methods: | T/T, Western Union, Paypal, Alipay, Credit Card. |
| Shipping port | Ningbo or ShangHai |
|
Wire Range |
0.5-1.5 mm2 |
|
A.W.G. |
22-16 |
|
Max Current |
19A |
| Item No | Stud size | Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| LSV1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| LSVS1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| LSVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| LSVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| LSVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
|
Wire Range |
1.5-2.5 mm2 |
|
A.W.G. |
16-14 |
|
Max Current |
27A |
| Item No | Stud size | Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| LSV2-3.5 | #6 | 3.7 | 6.0 | 21.2 | 6.5 | 10.0 | 4.9 | Bule |
| LSVS2-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| LSVL2-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| LSVS2-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| LSVL2-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
|
Wire Range |
4-6 mm2 |
|
A.W.G. |
12-10 |
|
Max Current |
48A |
| Item No | Stud size | Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| LSV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| LSV5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| LSV5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 | |||
| LSV5.5-6 | 1/4 | 6.4 | 12.0 | 31.2 | 12.0 | |||
