Professional Copper Cable Lugs JGB / SC 1.5mm2 - 1000mm2 Wire Range

China Professional Copper Cable Lugs JGB / SC 1.5mm2 - 1000mm2 Wire Range supplier

Large Image :  Professional Copper Cable Lugs JGB / SC 1.5mm2 - 1000mm2 Wire Range

Product Details:

Place of Origin: WENZHOU, CHINA
Brand Name: MG MOGEN
Certification: CE, ROHS, ISO9001, SGS
Model Number: SC JGB

Payment & Shipping Terms:

Minimum Order Quantity: 1bags
Price: Price is negotiable
Packaging Details: 100 pcs per bag, 5-20 bags in a box, 12-20 boxes in a carton
Delivery Time: 3-30 days, also according customers' purchase quantities.
Payment Terms: T/T or LC(big amount orders)
Supply Ability: 1000000pcs per week
Contact Now
Detailed Product Description
Another Name: Copper Terminal Lugs Body Material: Copper
Surface Plating: Tin Samples: Provide Free Samples
Wire Range: 1.5mm2 - 1000mm2 Total Length: 18mm - 200mm
High Light:

cable terminal lugs


electrical wire lugs

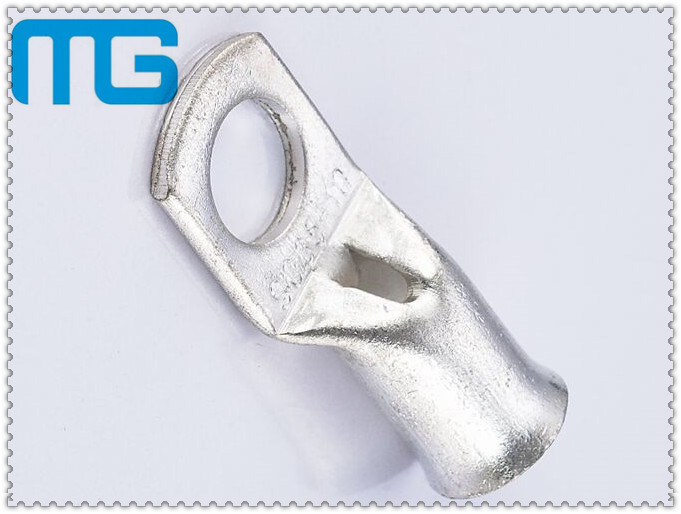

Professional Copper Cable Lugs JGB / SC 1.5mm2 - 1000mm2 Wire Range



Hot Selling JGB / SC imported copper terminals (CE compliant) rohs sgs approval


Hot Selling NEW SC(JGB) SPY Triangle , Bell Mouth copper terminal lugs cable


2017 SC JGB Series Copper Tube Terminal Lug Copper Cable Lugs CE ROHS


SC series JGB Type TT Crimp Type Terminal Lug , Terminal Lugs Ring Type , Cable Lugs




Terminal Body: Copper


Surface plating: Tin


Wire range: 1.5mm2 - 1000mm2


Total length: 18mm - 200mm



Professional Copper Cable Lugs JGB / SC 1.5mm2 - 1000mm2 Wire Range


Item No Dimension(mm)
φ D d L
SC(JGB)-1.5 φ4.2,φ5.2 3.5 1.8 18
SC(JGB)-2.5 φ4.2,φ5.2,φ6.2 4 2.5 19
SC(JGB)-4 φ5.2,φ6.2 4.8 3.1 21
SC(JGB)-6 φ5.2,φ6.2,φ8.2 5.5 3.8 24
SC(JGB)-10 φ6.2,φ8.2 6.8 4.8 25.5
SC(JGB)-16 φ6.2,φ8.2,Φ10.5 7.5 5.5 30.5
SC(JGB)-25 φ6.2,φ8.2,Φ10.5 9 7 34
SC(JGB)-35 φ6.2,φ8.2,Φ10.5,Φ12.5 10.5 8.2 38
SC(JGB)-50 φ8.2,Φ10.5,Φ12.5 12.5 9.8 45
SC(JGB)-70 φ8.2,Φ10.5,Φ12.5 14.5 11.5 50
SC(JGB)-95 Φ10.5,Φ12.5 17.5 13.8 55.5
SC(JGB)-120 φ12.5,φ16.5 19.5 15.5 63
SC(JGB)-150 φ12.5,φ16.5 21 16.5 71
SC(JGB)-185 φ16.5 23.5 18.8 78
SC(JGB)-240 φ16.5 26.5 21 92
SC(JGB)-300 φ16.5,φ20.5 30 24 102
SC(JGB)-400 φ16.5,φ20.5 34 26.5 113
SC(JGB)-500 φ16.5,φ20.5 38 30 123
SC(JGB)-630 φ20.5 45 35 135
SC(JGB)-800 φ22.5 50 39 170
SC(JGB)-1000 φ22.5 56 44 200



Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).


Also, we can transport the goods by air or by sea(Quantity is big).
