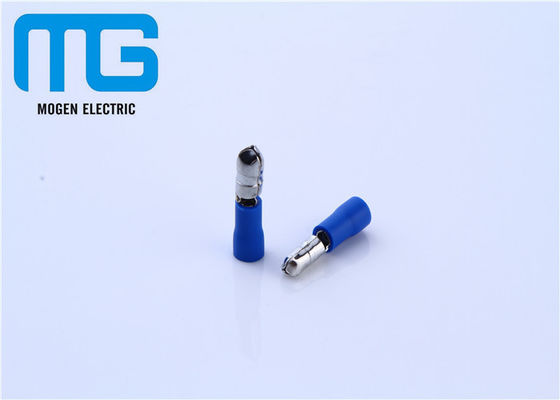

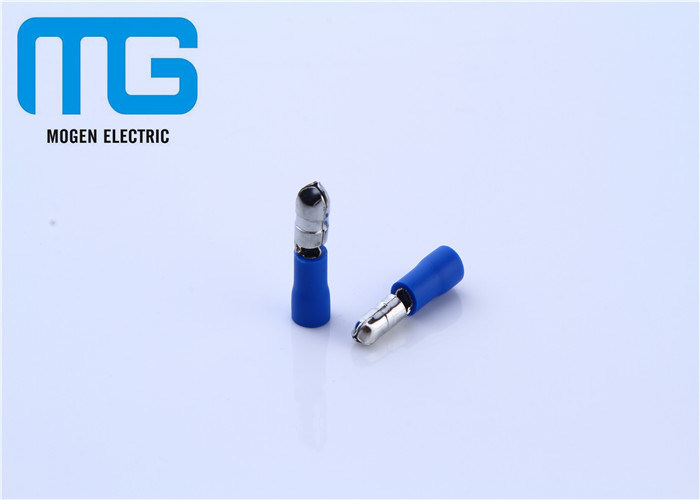

Professional Male Bullet Electrical Quick Disconnect Insulated MPD Tinning Disconnects
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Tinning Disconnects | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2 |
| Max Current: | 10A 15A 24A | Material: | Brass With Tin Plated, PVC |
| High Light: | wire crimp terminals,plastic wire connectors |
||
Good Quality Professional Male Bullet Electrical Quick Disconnect Insulated MPD Tinning Disconnects
Durable MPD Bullet Electrical Disconnector for Automotive Insulated Male Terminal
China MPD Series Bullet Shape Male Pre Insulated Electric Quick Disconnect
Hot selling MPD Insulated Bullet arrester Disconnects outdoor
Our service:
(1) Free samples to test the quality.
(2) Very competitive price .
(3) Pack according to customer's requirement.
(4) Customizable different copper cable lug.
(5) Good quality, fast lead time.
Inner packing: 1000pcs / poly bag Outer packing: export carton 37cm*37cm*26.5cm
100% Inspection
1. Application: wire connection.
2. Material: pure copper;
3. Shape: eyelet lug;
4. Attribute: high conductivity,heavy current;
Diagrammatic Drawing And Data Sheet Of MPD tinning bullet Insulated Male Disconnects :
|
Wire Range
|
0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2
|
|
A.W.G.
|
22-16 16-14 12-10
|
|
Max Current
|
10A 15A 24A
|
Item No |
Dimension(mm) | Color |
||||||
| dφ | F | Dφ | H | L | ||||
| MPD1.25-156 | 4.0 | 11.0 | 1.7 | 10.0 | 21.0 | Red |
||
| MPD1.25-176 | 4.5 | 14.0 | 1.7 | 10.0 | 24.0 | |||
| MPD2-156 | 4.0 | 11.0 | 2.3 | 10.0 | 21.0 | Blue |
||
| MPD2-176 | 4.5 | 14.0 | 2.3 | 10.0 | 24.0 | |||
| MPD2-195 | 5.0 | 11.0 | 2.3 | 10.0 | 21.0 | |||
| MPD5.5-195 | 5.0 | 12.0 | 3.4 | 13.0 | 25.0 | Yellow |
||
transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
-------------------------------------------------------------------------
Packing:
Our normal packing is 1000/500pcs per bag, one bag in a box, outside by export carton.
We also can pack as customers' requirements.
