Pure Copper Compression Lugs Battery Terminals Wire Terminals Connector 70mm2
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Samples: | Free Samples | Another Name: | Tinned Copper Cable Lugs |
|---|---|---|---|
| Wire Range: | 10mm2 - 800mm2 | Total Length: | 18mm - 200mm |
| Body Material: | Pure Copper | Surface Plating: | Tined |
| High Light: | cable terminal lugs,electrical wire lugs |
||

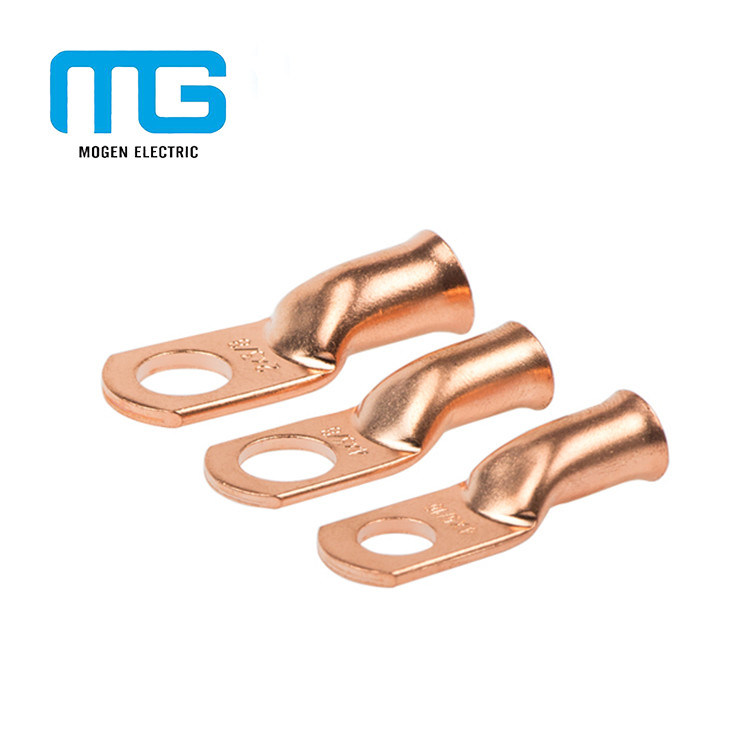

Pure Copper Cable lugs Battery Terminals Wire terminals connector 70mm2
Headline:
MOGEN Cable Lugs are manufactured from 99.95% oxygen-free high conductivity copper tube and are electro tinned.
The materials are high quality copper, by vacuum annealing, better conductivity, ductility and low impedance;
The surface is smooth with high touch force;
The surface is tinned for corrosion protection and preventing the electronic effect;
Wire can be cremped or soldered to copper lug,widely used in electromobile, charging pile; electrical engineering, power system, distribution equipments, etc
Specifications:
| Item No | Dimension(mm) | |||||||
| φ | D | d | L | |||||
| SC(JGK)-1.5 | φ4.2,φ5.2 | 3.5 | 1.8 | 18 | ||||
| SC(JGK)-2.5 | φ4.2,φ5.2,φ6.2 | 4 | 2.5 | 19 | ||||
| SC(JGK)-4 | φ5.2,φ6.2 | 4.8 | 3.1 | 21 | ||||
| SC(JGK)-6 | φ5.2,φ6.2,φ8.2 | 5.5 | 3.8 | 24 | ||||
| SC(JGK)-10 | φ6.2,φ8.2 | 6.8 | 4.8 | 25.5 | ||||
| SC(JGK)-16 | φ6.2,φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 | ||||
| SC(JGK)-25 | φ6.2,φ8.2,Φ10.5 | 9 | 7 | 34 | ||||
| SC(JGK)-35 | φ6.2,φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 | ||||
| SC(JGK)-50 | φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 | ||||
| SC(JGK)-70 | φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 | ||||
| SC(JGK)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 | ||||
| SC(JGK)-120 | φ12.5,φ16.5 | 19.5 | 15.5 | 63 | ||||
| SC(JGK)-150 | φ12.5,φ16.5 | 21 | 16.5 | 71 | ||||
| SC(JGK)-185 | φ16.5 | 23.5 | 18.8 | 78 | ||||
| SC(JGK)-240 | φ16.5 | 26.5 | 21 | 92 | ||||
| SC(JGK)-300 | φ16.5,φ20.5 | 30 | 24 | 102 | ||||
| SC(JGK)-400 | φ16.5,φ20.5 | 34 | 26.5 | 113 | ||||
| SC(JGK)-500 | φ16.5,φ20.5 | 38 | 30 | 123 | ||||
| SC(JGK)-630 | φ20.5 | 45 | 35 | 135 | ||||
| SC(JGK)-800 | φ22.5 | 50 | 39 | 170 | ||||
| SC(JGK)-1000 | φ22.5 | 56 | 44 | 200 | ||||
Transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
Packing:
FAQ
1 Q:Do you have your own factory or just a trading company?
A: We have our R&D, producing, marketing and trading team, more than 200 employees in total. With 12 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.
2 Q: Could you change the size for the customer?
A: Yes, sizes can be customized, for more details please contact us.
3 Q: How many days delivery the order?
A: Normally after deposit or L/C 15 days,In case of urgent need, delivery date can be advanced depends on your request.
4 Q: Do you provide free sample?
A:Yes, Sample can be provided with freight charge to be collected.
5 Q: Do you accept OEM or ODM?
A:Yes, OEM and ODM are available, any legal logo can be printed on the product.
6 Q:How about the after-sale service?
A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.
Contact Us:
WENZHOU MOGEN ELECTRIC CO., LTD
Address: NO. 119 Xinguang Road, Xinguang Industrial Zone, Liushi Town, Yueqing City, Zhejiang Province, China.
Zip Code: 325604
Skype ID: 448778575@qq.com
Email : export7@mogen.cc
Contact Details
