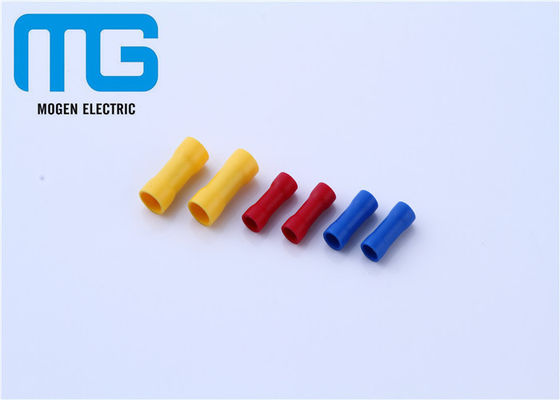

PVC Insulated Wire Connectors Durable Insulated Wire Terminals For Wire TL-JTK PVT
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Insulated Wire Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2 |
| Color: | Red Blue Yellow | Material: | Copper With Tin Plated, PVC |
| High Light: | nylon quick disconnects,copper wire connectors |
||
PVC Insulated Wire Connectors Durable Insulated Wire Terminals For Wire TL-JTK PVT
Headline:
Best price PVC durable insulated parallel connectors used for wire TL-JTK PVT
Electrical connector accessories TL-JTK type PVC insulated parallel connector
Product Parameters:
| Max current: 19A 27A 48A |
| Materials: PVC and Copper |
| Surface: Tin & mat-tin plated |
| Wire Size: 0.5-1.5mm,1.5-2.5mm,4-6mm |
| Sample time: Free Samples Within 48 Hours |
|
AWG: 22-16 16-14 12-10 Inchs
|
99.9% High Purity Cooper
All material are Envirometal .
Offer Free Samples
Certificates : RoHS SGS CE ISO9001
Enough stock to fit your urgently need.
Perfect package according to your demand.
Product can be made accurately by your design and demand.
We have our own design team, own mold workshop and injection moulding workshop.
Packing Introduce:
1: Packing with double-wall carton, so it is very stronger.
2: Packing with plastic or wood pallet.
3: We can help to print your logo on carton.
4: Packing size can be Designed or customized for u.
Inner packing: 2000pcs / plastic bag, Outer packing: standard export carton, package also could according your requirements.
|
Product Name
|
Insulated Wire Connectors TL-JTK PVT
|
|
|
Terminal Body
|
Copper | |
|
Color
|
Red Insulation: Conductor size 0.5-1.5mm2 / 22-16awg.
|
|
|
Blue Insulation: Conductor size 1.5-2.5mm2 / 16-14awg.
|
||
|
Yellow Insulation: Conductor size 4.0-6.0mm2 / 12-10awg.
|
||
|
PVC
|
||
|
Plating
|
Tin
|
|
Item No |
Dimension(mm) | Wire range | Color |
|||||
| I | dφ | L | A.W.G. | mm2 | ||||
| PVT1.25 | 8.0 | 1.7 | 16.0 | 22-16 | 0.5-1.5 | Red | ||
| PVT2 | 8.0 | 2.3 | 16.0 | 16-14 | 1.5-2.5 | Bule | ||
| PVT5.5 | 8.5 | 3.4 | 20.5 | 12-10 | 4-6 | Yellow | ||
-------------------------------------------------------------------------
transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
-------------------------------------------------------------------------
Packing:
Our normal packing is 100pcs per bag, one bag in a box, outside by export carton.
We also can pack as customers' requirements.
