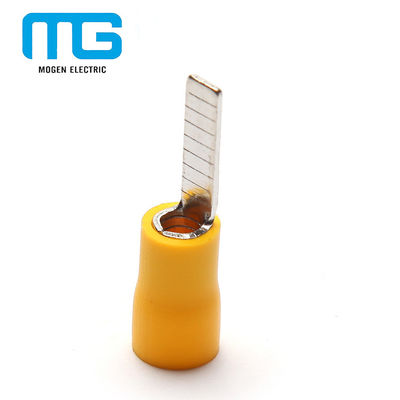

PVC Pre - Insulated Quick Disconnect Terminals , Insulated Pin Terminal DBV Series
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Blade Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2 |
| Max Current: | 19A 27A 48A | Material: | Copper With Tin Plated, PVC |
| High Light: | insulated crimp terminals,quick disconnect terminals |
||
DBV series PVC Pre-insulated crimping Cable Blade Insulated Wire Terminals With CE ROHS Certification
Headline:
DBV series PVC Pre-insulated crimping Cable Blade Terminals With CE ROHS Certification
Shipping:
Small order: we send by express like DHL, Fedex ,TNT, UPS etc.
Big order: shipped by sea, by air or as customer's request.
Product Description:
| Usage | Wire Terminals |
| Feature | High Quality |
| Material | Copper with Tin plated, PVC |
| Color | Red, Yellow, Blue |
| Packaging | Factory satndard packing or Pack as customers' requests |
| Alibaba Trade Assurance Suppliers | Yes |
| Certification | CE SGS ROHS ISO9001 |
| Cable tie paypal | T/T, Western Union, Paypal, Alipay, Credit Card. |
| Shipping port | Ningbo or ShangHai |
|
Wire Range
|
0.5-1.5 mm2
|
|
A.W.G.
|
22-16
|
|
Max Current
|
19A
|
Item No |
Dimension(mm) | Color |
||||||
| B | L | F | Dφ | |||||
| DBV1.25-10 | 2.3 | 20.0 | 10.0 | 4.3 | Red | |||
| DBV1.25-11 | 3.0 | 21.0 | 11.0 | |||||
| DBV1.25-14 | 3.0 | 24.0 | 14.0 | |||||
| DBV1.25-18 | 2.2 | 28.0 | 18.0 | |||||
|
Wire Range
|
1.5-2.5 mm2
|
|
A.W.G.
|
16-14
|
|
Max Current
|
27A |
Item No |
Dimension(mm) | Color |
||||||
| B | L | F | Dφ | |||||
| DBV2-9 | 2.8 | 19.0 | 9.0 | 4.9 | Bule | |||
| DBV2-10 | 2.4 | 20.0 | 10.0 | |||||
| DBV2-14 | 2.4 | 24.0 | 14.0 | |||||
| DBV2-18 | 2.2 | 28.0 | 18.0 | |||||
|
Wire Range
|
4-6 mm2
|
|
A.W.G.
|
12-10
|
|
Max Current
|
48A |
Item No |
Dimension(mm) | Color |
||||||
| B | L | F | Dφ | |||||
| DBV5.5-10 | 2.8 | 22.5 | 10.0 | 5.6 | Yellow | |||
| DBV5.5-14 | 4.5 | 26.5 | 14.0 | |||||
| DBV5.5-18 | 4.5 | 30.5 | 18.0 |
|||||
