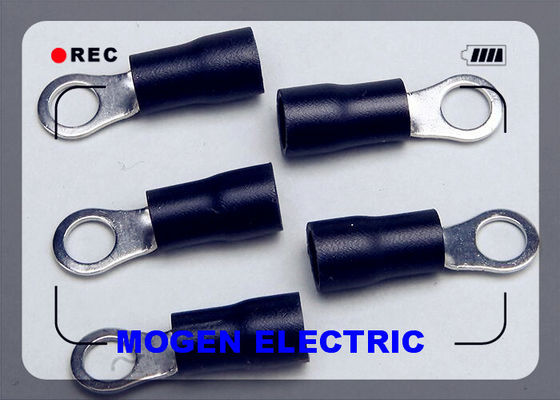

ring pre-insulated terminal black rv Insulated Wire Terminals wenzhou mogen brand
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | CE Wire Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 2.5-4mm2 |
| Max Current: | 37A | Insulator Color: | Black |
| High Light: | insulated pin terminal,quick disconnect terminals |
||
ring pre-insulated terminal black rv Insulated Wire Terminals wenzhou mogen brand
RV red / blue / black / yellow copper ring terminals 2017 Standard insulated
100% Inspection
Descriptions:
RV red / blue / black / yellow copper ring terminals
----------------- copper ring terminals application:
RV red / blue / black / yellow copper ring terminals is applied for kinds of industrial and mining enterprises
such as steel smelting, prtrochemical industry, electric, power, electron , railway, construction, airport,
mine, stope, water supply and drain processing factory , port, store, hotel and so on . And it is also for mating
and maintenance fittings of device power and connectors imported from abroad. So it is a new generation
ideal power supply unit .
The products are sold to over 20 provinces, municipalities and autonomous
regions in our country , and sortheast Asia, European , Americal and so on areas as well, they are quite
enjoyed by clients.
|
Wire Range
|
2.5-4mm2
|
|
A.W.G.
|
14-12
|
|
Max Current
|
37A
|
Item No |
Stud size |
Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| RV3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 13.0 | 6.2 | Black |
| RVS3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.4 | 12.0 | 27.9 | 7.7 | |||
| RV3.5-8 | 5/16 | 8.4 | 15.0 | 32.0 | 13.5 | |||
| RV3.5-10 | 3/8 | 10.5 | 15.0 | 32.0 | 13.5 | |||
Shipping
1. We will ship the items within 3-- -30 working days after the payment is reached.
2. We ship to you by Express.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
