RV5.5-4 crimped terminal Copper workable quality ring Insulated Wire Terminals

: Large Image : RV5.5-4 crimped terminal Copper workable quality ring Insulated Wire Terminals

Product Details:

Place of Origin:	CHINA
Brand Name:	MOGEN
Certification:	CE ROHS ISO9001 SGS
Model Number:	RV RVS RVL TO-JTK

Payment & Shipping Terms:

Minimum Order Quantity:	100bags
Price:	Price is negotiable
Packaging Details:	100pcs/bags
Delivery Time:	3-30day
Payment Terms:	T/T,L/C,Paypal
Supply Ability:	10000bags/day

Contact Now

Detailed Product Description

Another Name:	RV5.5 TO-JTK Terminals	Terminal Body:	Copper With Tin Plated
Samples:	Provide Free Samples	Wire Range:	4-6mm2
Max Current:	48A	Insulator Color:	Yellow
High Light:	insulated pin terminal , quick disconnect terminals

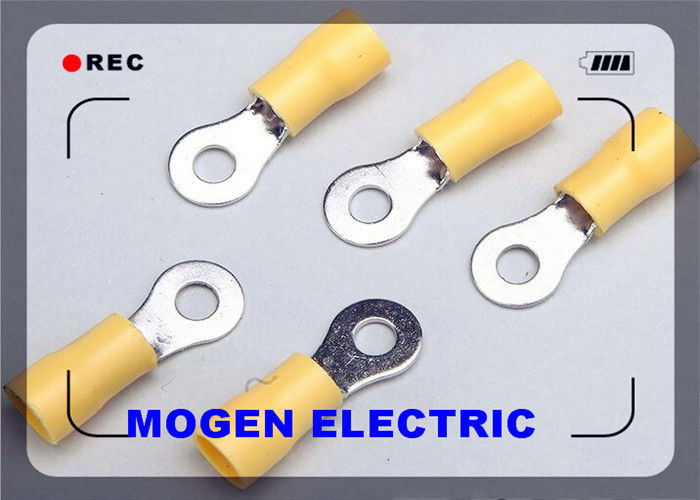

RV5.5-4 crimped terminal Copper workable quality ring Insulated Wire Terminals

2017 NEW electronic circuit board with RV 5.5-4 round terminal

100% Inspection

Product Description:

Function of RV series:

1. Insulation: PVC or Nylon

2. Terminal: 99.7% pure copper or seamed brass

3. Plating: Tinned

4. Application: Wire connection

5. Special: Free sample

6. Certificates: Reached RoHS / SGS / CE / ISO9001

7. Color: Red / Blue / Black / Yellow, etc

8. HS code: 8536909000

9. Connection mode: European

10. Max current: 19A / 27A / 37A / 48A

11. Cable size: 0.5-1.5mm²/ 1.5-2.5mm²/ 2.5-4mm² / 4-6mm²

12. Attribute: High conductivity , heavy current

13. RV 5.5 round terminal

14. A.W.G.(USA standard): 22-16 / 16-14 / 14-12 / 12-10

15. Country of origin: Liushi industrial, Wenzhou, China(mainland)

Packing:

Inner packing: 100 or 1000 pcs / polybag.

several bags in one box / 8-12 boxes in one carton.

Outer packing: export carton 37cm * 37cm * 26.5cm.

Product:	RV5.5 series RV faston terminal cable lugs
Item No.:	RV5.5
Insulated Material:	Vinyl thermostability:75℃
Contact material:	Copper
Surface treatment:	Tin plating
Max current:
	4-6mm² (A.W.G. 12-10)-------------48A

Wire Range

4-6mm²

A.W.G.

12-10

Max Current

48A

RV5.5-4 crimped terminal Copper workable quality ring Insulated Wire Terminals

Item No	Stud size	Dimension(mm)						Color
Item No	Stud size	d2	B	L	F	H	Dφ	Color

RV5.5-3.5	#6	3.7	7.2	21.4	5.9	13.0	6.7	Yellow
RVS5.5-4	#8	4.3	7.2	21.4	5.9
RVL5.5-4	#8	4.3	9.5	25.5	8.3
RV5.5-5	#10	5.3	9.5	25.5	8.3
RV5.5-6	1/4	6.4	12.0	31.5	13.0
RV5.5-8	5/16	8.4	15.0	33.7	13.7
RV5.5-10	3/8	10.5	15.0	33.7	13.7
RV5.5-12	1/2	13.0	19.2	38.1	16.0
