RV red / blue / black / yellow copper ring Insulated Wire Terminals 2017 Standard insulated
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | CE Insulated Terminals | Certificate: | ISO9001 ROHS CE SGS |
|---|---|---|---|
| Samples: | Provide Free Samples | Wire Range: | 2.5-4mm2 |
| Max Current: | 37A | Insulator Color: | Black |
| High Light: | insulated crimp terminals,quick disconnect terminals |
||

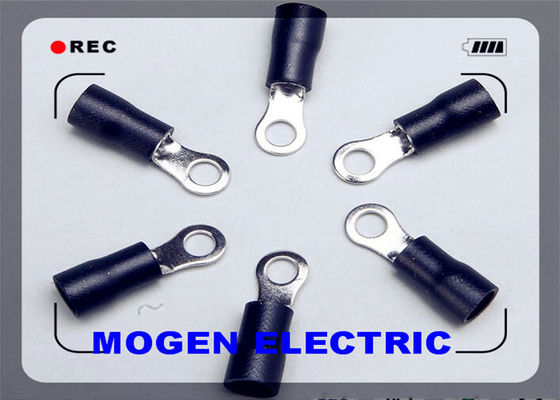

RV red / blue / black / yellow copper ring Insulated Wire Terminals 2017 Standard insulated
RV 2-3.2 Insulated copper wire ring terminals ROHS approval CE
100% Inspection
Our Packing:
pre-insulation terminals: 100pcs per plastic bag + inner box + master carton;
Other packing: double blister, blister with card header, etc;
Package could be as customer's requirement.
Shipping term:
If small quantity, usually send by courier (DHL, FEDEX, TNT and so on) . If big quantity, we advice ship by
air or by sea. this will use longer time , but cheaper fees. We are near NINGBO and SHANGHAI port.
|
Wire Range
|
2.5-4mm2
|
|
A.W.G.
|
14-12
|
|
Max Current
|
37A
|
Item No |
Stud size |
Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| RV3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 13.0 | 6.2 | Black |
| RVS3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.4 | 12.0 | 27.9 | 7.7 | |||
| RV3.5-8 | 5/16 | 8.4 | 15.0 | 32.0 | 13.5 | |||
| RV3.5-10 | 3/8 | 10.5 | 15.0 | 32.0 | 13.5 | |||
Shipping
1. We will ship the items within 3 - 30 working days after the payment is reached.
2. We ship to you by Express.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
