Smart Electrical Quick Disconnect , Male And Female Connectors CE Certification

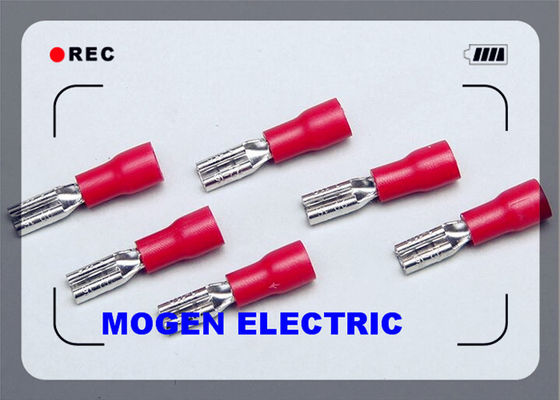

Large Image : Smart Electrical Quick Disconnect , Male And Female Connectors CE Certification

Product Details:

Place of Origin:	CHINA
Brand Name:	MOGEN
Certification:	CE ROHS ISO9001 SGS
Model Number:	FDD

Payment & Shipping Terms:

Minimum Order Quantity:	100bags
Price:	Price is negotiable
Packaging Details:	100pcs/bags
Delivery Time:	3-30day
Payment Terms:	T/T,L/C,Paypal
Supply Ability:	10000bags/day

Contact Now

Detailed Product Description

Another Name:	Female Disconnects	Certificate:	ISO9001 ROHS CE SGS
Samples:	Provide Free Samples	Wire Range:	0.5-1.5mm2, 1.5-2.5mm2, 4-6mm2
Color:	Red Blue Yellow	Material:	Brass With Tin Plated, PVC
High Light:	wire crimp terminals , plastic wire connectors

Smart High Quality FDD cold press terminal Copper nose Male and female Electrical Quick Disconnect

Certification:

ROHS

ISO9001:2000

CE certification

SGS Lead-free certification

Our Services:

*well and high quality control

*prompt delivery

*small order acceptable

*perfect craft procedure

*customer's designs are welcome

Products Descriptions:

Product Name	Disconnect Female Terminals
Terminal Body	Brass
Color	Red Insulation: Conductor size 0.5-1.5mm/ 22-16awg.
	Blue Insulation: Conductor size 1.5-2.5mm / 16-14awg.
	Black Insulation: Conductor size 2.5-4.0mm / 14-12awg.
	Yellow Insulation: Conductor size 4.0-6.0mm / 12-10awg.
Insulation	PVC
Plating	Tin
Max Voltage (Ui)	300V
Temperature	105°c

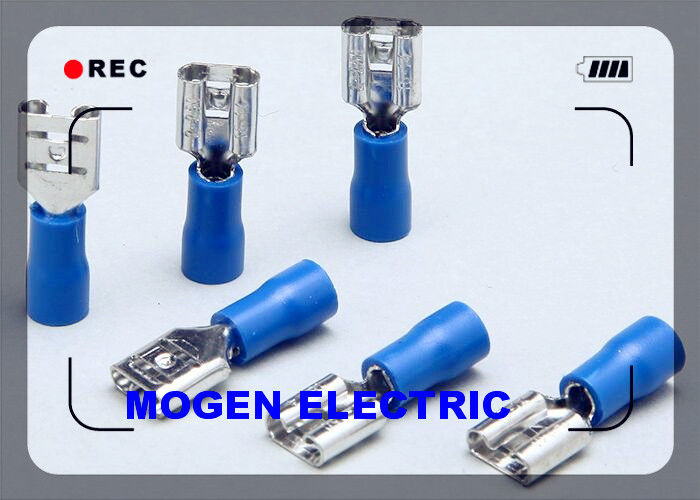

Smart Electrical Quick Disconnect , Male And Female Connectors CE Certification

Item No	(mm) Nema Tab	Dimension(mm)					Color
Item No	(mm) Nema Tab	B	dφ	Dφ	L	H	Color

FDD1.25-110(5)	0.5×2.8	3.8	1.7	3.8	19.0	10.0	Red
FDD1.25-110(8)	0.8×2.8	3.8	1.7	3.8	19.0	10.0
FDD1.25-187(5)	0.5×4.75	5.6	1.7	3.8	19.0	10.0
FDD1.25-187(8)	0.8×4.75	5.6	1.7	3.8	19.0	10.0
FDD1.25-205	0.5×5.2	6.5	1.7	3.8	20.0	10.0
FDD1.25-250	0.8×6.35	7.4	1.7	3.8	21.0	10.0
FDD2-110(5)	0.5×2.8	3.8	2.3	4.3	19.0	10.0	Bule
FDD2-110(8)	0.8×2.8	3.8	2.3	4.3	19.0	10.0
FDD2-187(5)	0.5×4.75	5.6	2.3	4.3	19.0	10.0
FDD2-187(8)	0.8×4.75	5.6	2.3	4.3	19.0	10.0
FDD2-205	0.5×5.2	6.5	2.3	4.3	20.0	10.0
FDD2-250	0.8×6.35	7.4	2.3	4.3	21.0	10.0
FDD2-312	0.8×8.0	9.0	2.3	4.3	23.0	10.0
FDD5.5-250	0.8×6.35	7.4	3.4	5.7	25.0	13.0	Yellow
FDD5.5-375	1.2×9.4	10.9	3.4	5.7	29.6	13.0	Yellow
