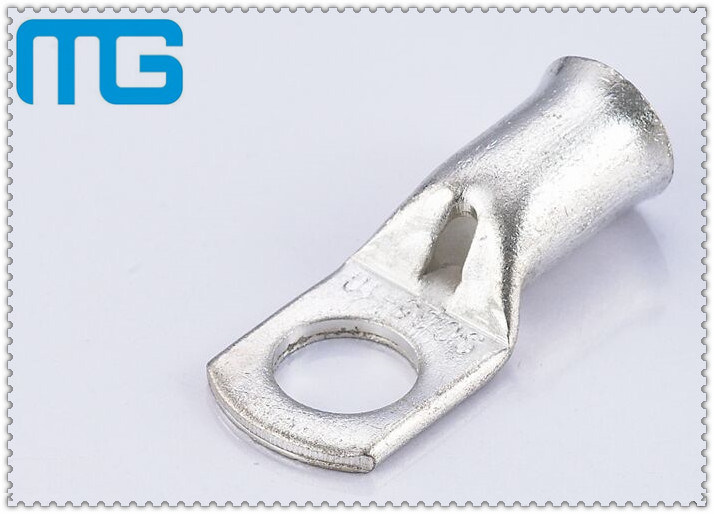

SPY Triangle Bell Mouth Copper Cable Lugs With 18mm - 200mm Length ROHS Certification
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | JGB Bell Mouth Lugs Cable | Body Material: | Copper |
|---|---|---|---|
| Surface Plating: | Tin | Samples: | Provide Free Samples |
| Wire Range: | 1.5mm2 - 1000mm2 | Total Length: | 18mm - 200mm |
| Highlight: | cable terminal lugs,copper terminal lugs |
||
SPY Triangle Bell Mouth Copper Cable Lugs With 18mm - 200mm Length ROHS Certification
Headline:
Hot Selling NEW SC(JGB) SPY Triangle , Bell Mouth copper terminal lugs cable
2017 SC JGB Series Copper Tube Terminal Lug Copper Cable Lugs CE ROHS
SC series JGB Type TT Crimp Type Terminal Lug , Terminal Lugs Ring Type , Cable Lugs
Materials:
Terminal Body: Copper
Surface plating: Tin
Wire range: 1.5mm2 - 1000mm2
Total length: 18mm - 200mm
Specifications:
| Item No | Dimension(mm) | |||||||
| φ | D | d | L | |||||
| SC(JGB)-1.5 | φ4.2,φ5.2 | 3.5 | 1.8 | 18 | ||||
| SC(JGB)-2.5 | φ4.2,φ5.2,φ6.2 | 4 | 2.5 | 19 | ||||
| SC(JGB)-4 | φ5.2,φ6.2 | 4.8 | 3.1 | 21 | ||||
| SC(JGB)-6 | φ5.2,φ6.2,φ8.2 | 5.5 | 3.8 | 24 | ||||
| SC(JGB)-10 | φ6.2,φ8.2 | 6.8 | 4.8 | 25.5 | ||||
| SC(JGB)-16 | φ6.2,φ8.2,Φ10.5 | 7.5 | 5.5 | 30.5 | ||||
| SC(JGB)-25 | φ6.2,φ8.2,Φ10.5 | 9 | 7 | 34 | ||||
| SC(JGB)-35 | φ6.2,φ8.2,Φ10.5,Φ12.5 | 10.5 | 8.2 | 38 | ||||
| SC(JGB)-50 | φ8.2,Φ10.5,Φ12.5 | 12.5 | 9.8 | 45 | ||||
| SC(JGB)-70 | φ8.2,Φ10.5,Φ12.5 | 14.5 | 11.5 | 50 | ||||
| SC(JGB)-95 | Φ10.5,Φ12.5 | 17.5 | 13.8 | 55.5 | ||||
| SC(JGB)-120 | φ12.5,φ16.5 | 19.5 | 15.5 | 63 | ||||
| SC(JGB)-150 | φ12.5,φ16.5 | 21 | 16.5 | 71 | ||||
| SC(JGB)-185 | φ16.5 | 23.5 | 18.8 | 78 | ||||
| SC(JGB)-240 | φ16.5 | 26.5 | 21 | 92 | ||||
| SC(JGB)-300 | φ16.5,φ20.5 | 30 | 24 | 102 | ||||
| SC(JGB)-400 | φ16.5,φ20.5 | 34 | 26.5 | 113 | ||||
| SC(JGB)-500 | φ16.5,φ20.5 | 38 | 30 | 123 | ||||
| SC(JGB)-630 | φ20.5 | 45 | 35 | 135 | ||||
| SC(JGB)-800 | φ22.5 | 50 | 39 | 170 | ||||
| SC(JGB)-1000 | φ22.5 | 56 | 44 | 200 | ||||
Transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
FAQ:
1. Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
2. Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all of our products. Because we have so many items, and it’s impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
3. Q: Can you provide samples ? Are the samples free ?
"A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.
But you have to pay for the shipping cost. If you need many items, or need more qty for each item,
we will charge for the samples."
