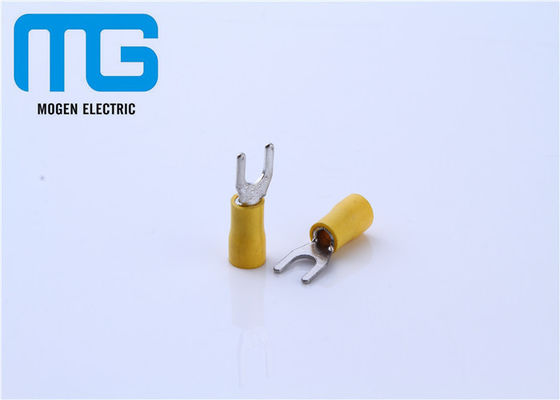

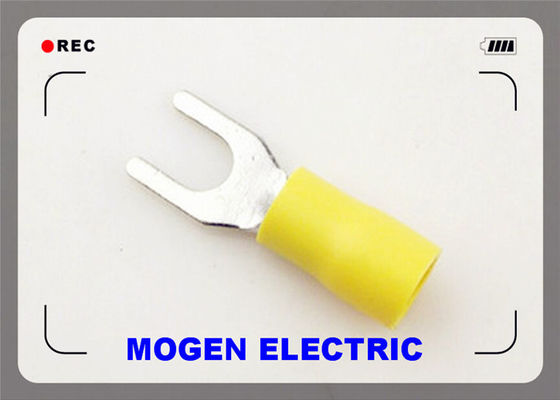

SV5.5 copper electrical insulated spade Insulated Wire Terminals Tin plated TU-JTK yellow color PVC
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | Spade Wire Terminals | Terminal Body: | Copper |
|---|---|---|---|
| Plating: | Tin | Wire Range: | 4-6mm2 |
| Max Current: | 48A | Insulation Material: | PVC |
| High Light: | insulated pin terminal,quick disconnect terminals |
||
SV5.5 copper electrical insulated spade Insulated Wire Terminals Tin plated TU-JTK yellow color PVC
|
DESCRIPTION OF MOGEN COMPANY:
|
|
MOGEN Company have a large scale of production including is 16 production lines, 60 Jacketing machines,
50 Die-casting machines, 500m² Warehouse. |
Our Advantage
Long time working on Terminals made us the best.
1. Factory sells directly
2. Long-term, strong and steady supplying ability
3. Delivery time: within 7 working days
4. Do as your requirements on package, brand or other designs
| Wire Range | 4-6mm2 |
| A.W.G. | 12-10 |
| Max Current | 48A |
Item No |
Stud size |
Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 | 13.0 | 6.7 | Yellow |
| SVS5.5-4 | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| SVL5.5-4 | #8 | 4.3 | 9.0 | 25.2 | 7.5 | |||
| SV5.5-5 | #10 | 5.3 | 9.0 | 25.2 | 7.5 | |||
| SVS5.5-6 | 1/4 | 6.4 | 9.0 | 25.2 | 7.5 | |||
| SVL5.5-6 | 1/4 | 6.4 | 12.0 | 31.2 | 12.0 | |||
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | |||
Grantee:
1. 7 * 24 hours online service
---- your request will be solved in time.
2. One year quality grantee
---- products using can be protected.
3. 100% after sales service
---- we’ll be together with you for all questions.
