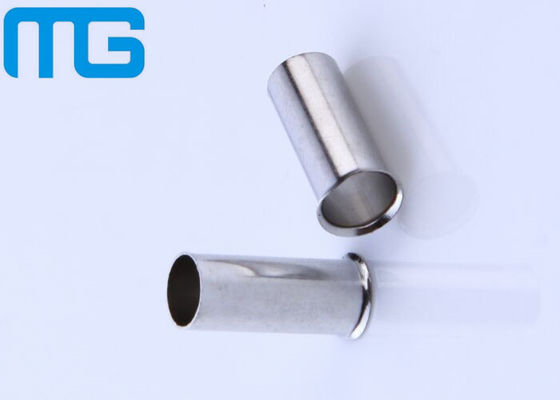

Tin Plated Crimp Non Insulated Connectors EN0306 Terminal Cold Press For Automotive

China Tin Plated Crimp Non Insulated Connectors EN0306 Terminal Cold Press For Automotive supplier
Tin Plated Crimp Non Insulated Connectors EN0306 Terminal Cold Press For Automotive supplier Tin Plated Crimp Non Insulated Connectors EN0306 Terminal Cold Press For Automotive supplier

Large Image :  Tin Plated Crimp Non Insulated Connectors EN0306 Terminal Cold Press For Automotive

Product Details:

Place of Origin: CHINA
Brand Name: MOGEN
Certification: CE ROHS ISO9001 SGS
Model Number: EN

Payment & Shipping Terms:

Minimum Order Quantity: 100bags
Price: Price is negotiable
Packaging Details: 100pcs/bags
Delivery Time: 3-30day
Payment Terms: T/T,L/C,Paypal
Supply Ability: 10000bags/day
Contact Now
Detailed Product Description
Another Name: Non-insulated EN Connectors Certificate: ISO9001 ROHS CE SGS
Samples: Provide Free Samples Wire Range: 0.3 - 185 Mm2
A.W.G.: 24 - 300/350 MCM Material: Copper With Tin Plated
High Light:

uninsulated butt connectors

,

copper butt connector

Tin Plated Crimp Non Insulated Connectors EN0306 Terminal Cold Press For Automotive


Headline:

Best price Tin-plated crimp automotive non-insulated connectors EN0306 terminal CE



Hot Selling Non-insulated EN Terminal. China Supply Crimp Cord End Connector

EN Non-insulated cord end terminals copper material Tin plated

Non-Insulated cord end terminal EN 0506 Max voltage 300V Cold Pressing

EN series Non-insualted Tube shape Cable lug Wire end crimping terminals


Free samples are available

1. Material of terminal body: Copper



2. Surface plating: Tin



3. Wire range: 0.3mm2 - 185mm2



4. A.W.G.: 24 -350MCM


The following is showed in detail about this product:

Tin Plated Crimp Non Insulated Connectors EN0306 Terminal Cold Press For Automotive

Item No Dimension(mm) Wire range
L Dφ Cφ Wφ A.W.G. mm2
　 　 　 　 　 　 　
EN 0306 6.0 1.1 0.8 1.5 24 0.3
EN 0308 8.0
EN 0505 5.0 1.3 1 1.7 22 0.5
EN 0506 6.0
EN 0508 8.0
EN 0510 10.0
EN 0512 12.0
EN 7506 6.0 1.5 1.2 1.9 20 0.75
EN 7508 8.0
EN 7510 10.0
EN 7512 12.0
EN 7515 15.0
EN 1006 6.0 1.7 1.4 2.2 18 1
EN 1008 8.0
EN 1010 10.0
EN 1012 12.0
EN 1015 15.0
EN 1018 18.0
EN 1507 7.0 2 1.7 2.5 16 1.5
EN 1508 8.0
EN 1510 10.0
EN 1512 12.0
EN 1515 15.0
EN 1518 18.0
EN 2506 6.0 2.6 2.3 3.3 14 2.5
EN 2507 7.0
EN 2508 8.0
EN 2510 10.0
EN 2512 12.0
EN 2515 15.0
EN 2518 18.0
EN 4009 9.0 3.2 2.8 3.9 12 4
EN 4010 10.0
EN 4012 12.0
EN 4015 15.0
EN 4018 18.0
EN 6006 6.0 3.9 3.5 4.7 10 6
EN 6010 10.0
EN 6012 12.0
EN 6015 15.0
EN 6018 18.0
EN 10-12 12.0 4.9 4.5 5.8 8 10
EN 10-15 15.0
EN 10-16 16.0
EN 10-18 18.0
EN 16-12 12.0 6.2 5.8 7.2 6 16
EN 16-15 15.0
EN 16-16 16.0
EN 16-18 18.0
EN 16-20 20.0
EN 16-22 22.0
EN 16-25 25.0
EN 16-30 30.0
EN 25-12 12.0 7.9 7.5 9.1 4 25
EN 25-15 15.0
EN 25-16 16.0
EN 25-18 18.0
EN 25-20 20.0
EN 25-22 22.0
EN 25-25 25.0
EN 25-30 30.0
EN 35-12 12.0 8.7 8.3 10.2 2 35
EN 35-15 15.0
EN 35-16 16.0
EN 35-18 18.0
EN 35-20 20.0
EN 35-25 25.0
EN 35-30 30.0
EN 50-12 12.0 10.9 10.3 12.7 1/0 50
EN 50-18 18.0
EN 50-22 22.0
EN 50-25 25.0
EN 50-30 30.0
EN 70-22 22.0 14.3 13.5 15.8 2/0 70
EN 70-25 25.0
EN 70-30 30.0
EN 90-25 25.0 15.6 14.8 17.3 3/0 95
EN 90-30 30.0
EN 90-32 32.0
EN 120-30 30.0 17.7 16.7 20.2 4/0 120
EN 120-32 32.0
EN 120-34 34.0
EN 120-38 38.0
EN 150-32 32.0 20.6 19.6 23 250/300
MCM		 150
EN 150-34 34.0
EN 150-38 38.0
EN 185-32 32.0 21.4 20.2 23.9 300/350
MCM		 185
EN 185-40 40.0



Tin Plated Crimp Non Insulated Connectors EN0306 Terminal Cold Press For Automotive



Company Information:

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.


2) Processing: Cold press


3) Material: T2 copper with tinned surface, cridible conductivity; PVC insulation cover, no break or rebound.


4) Certificate: ISO9001-2008


5) Manufacturer: price advantage, quick delivery
