Another Name: | Insulated Ring Terminals | Terminal Body: | Copper With Tin Plated |
---|---|---|---|
Samples: | Provide Free Samples | Wire Range: | 4-6mm2 |
Max Current: | 48A | Insulator Color: | Yellow |
High Light: | insulated crimp terminals,insulated pin terminal |

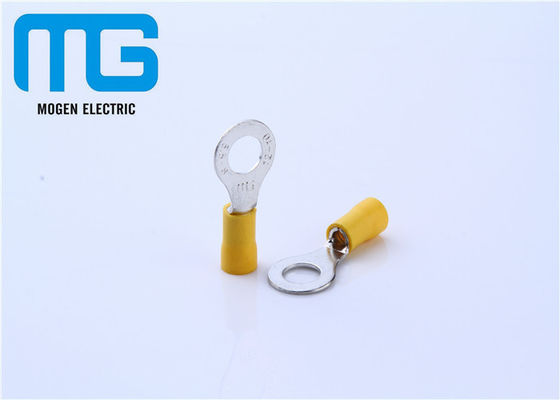

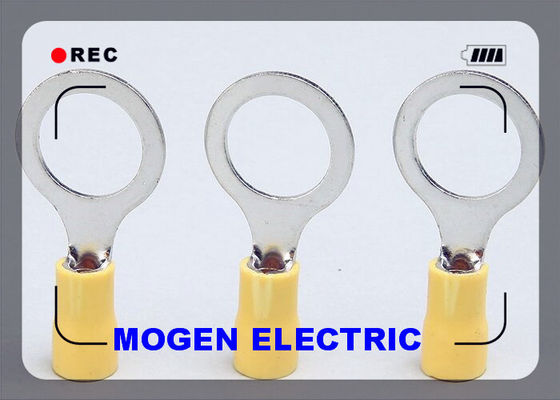

WENZHOU RV TYPE TU-JTK Pre-Insulated Wire Terminals Ring Terminal(Cable terminal)
Factory Supply copper terminal Ends insulated ring terminals RV TO-JTK RVS RVM
American Standard Specification RV Automotive Crimp Ring Terminal Lug Tin TU-JTK
100% Inspection
Packing:
1000pcs / bag
Box: 15 * 11* 9cm
Carton: 49 * 42 * 20cm
Wire Range
|
4-6mm2
|
A.W.G.
|
12-10
|
Max Current
|
48A
|
Item No |
Stud size |
Dimension(mm) | Color |
|||||
d2 | B | L | F | H | Dφ | |||
RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 13.0 | 6.7 | Yellow |
RVS5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | |||
RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-6 | 1/4 | 6.4 | 12.0 | 31.5 | 13.0 | |||
RV5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||
RV5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||
RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 |
