YQK-70 Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool

China YQK-70 Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool supplier
YQK-70 Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool supplier YQK-70 Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool supplier YQK-70 Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool supplier

Large Image :  YQK-70 Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool

Product Details:

Place of Origin: CHINA
Brand Name: MG MOGEN
Certification: CE, ROHS
Model Number: MG-70

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Price is negotiable
Packaging Details: 1pcs per box
Delivery Time: 3-30 work days, also according customers' finally purchase quantities.
Payment Terms: T/T,L/C,Paypal
Supply Ability: 50000pcs per week
Contact Now
Detailed Product Description
Another Name: Hydraulic Crimping Tool Press Weight: 7 Ton
Travel: 16 Mm Capacity: 16-240 Mm²
Packing Size: 54.5x13x23.5cm
High Light:

terminal crimping pliers

,

wire crimping tool



Headline:



MG-240 terminal crimping tool yellow black handle capacity 16-240mm² travel 16mm



It's a appllicable to press connection of cable copper and aluminium terminals.



Certificate:



ISO9001, SGS



MG-06WF tool parameters:



Capacity 4-70mm2
Travel 16 mm
Carton size 545x130x235mm2
Weight 4.8 KG
Rleeve color Yellow Black or customized



YQK-70 Hydraulic Wire Battery Cable Lug Terminal Crimper Crimping Tool



Heavy Duty 4-70mm 8T Manually Hydraulic Crimper Crimping Tool High speed hydraulic pressure working, then compression force lift and automatically change to low speed.






Item No
Dimension(mm)
φ D d L L1 B

DT-16 8.5 10 6.5 68 30 16
DT-25 8.5 11 7 70 33 18
DT-35 10.5 12 8.5 80 36 20.5
DT-50 10.5 14 9.5 85 38 23
DT-70 12.5 16 11.5 95 43 26
DT-95 12.5 18 13.5 104 46 28
DT-120 14.5 20 15 112 49 30
DT-150 14.5 22 16.5 120 51 34
DT-185 16.5 25 18.5 125 55 37
DT-240 16.5 27 21 136 60 40




Item No
Dimension(mm)
φ D d L L1

DL-16 8.5 10 6 70 30
DL-25 8.5 12 7 75 34
DL-35 10.5 14 8.5 85 38
DL-50 10.5 16 9.8 90 40
DL-70 12.5 18 11.5 102 48
DL-95 12.5 21 13.5 112 51
DL-120 14.5 23 15 120 53
DL-150 14.5 25 16.5 126 56
DL-185 16.5 27 18.5 133 58
DL-240 16.5 30 21 140 60







Products Detail :


Material: cast iron
The head could be rotated 180 degree freely for narrow space working.
Open cut design for easy operation, save your energy and time.
With safety valve inside for protecting crimping machine.
Crimped conductor that is not easy to break out or turn hot.
Crimping nuts and plastic carrying box are included.
Name: Hydraulic Crimper
Overall dimension: 300 x 95 x 65 mm
Crimping force: 8 Ton
Crimping stroke: 12mm
Rotation: 180Degree
Crimping range: Cu: 4-70mm2

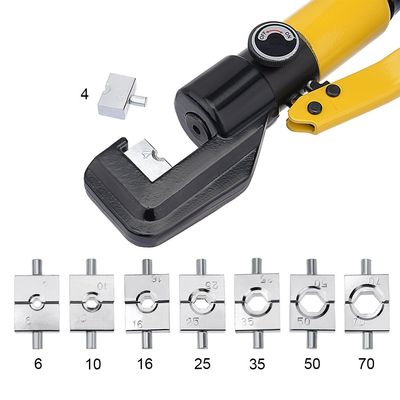

Crimping dies: 4/6/10/16/25/35/50/70mm
G.W:3kg
Color: yellow
Package included:
1  Hydraulic Crimper 8 pairs crimping dies
