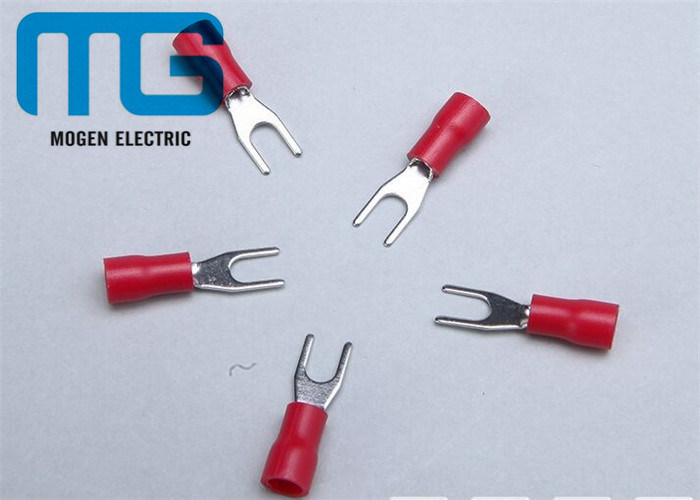

Yueqing Wenzhou extra copper sleeve Spade Insulated Wire Terminals TU-JTK
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Another Name: | TU-JTK Terminal | Terminal Body: | Copper |
|---|---|---|---|
| Certificate: | ISO9001 ROHS CE SGS | Wire Range: | 0.5-1.5mm2 |
| Max Current: | 19A | Color: | Red |
| High Light: | insulated crimp terminals,quick disconnect terminals |
||
Yueqing Wenzhou extra copper sleeve Spade Insulated Wire Terminals TU-JTK
Our Service:
|
1. OEM / ODM is welcome.
|
|
2. We are factory with competitive price and free sample.
|
|
3. Enough stock to meet fast delivery.
|
|
4. 2 year's quality guarantee.
|
|
5. Alibaba trade assurance.
|
|
6. Form E, C/O is available.
|
Specifications:
| Wire Range | 0.5-1.5mm2 |
| A.W.G. | 22-16 |
| Max Current | 19A |
Item No |
Stud size |
Dimension(mm) | Color |
|||||
| d2 | B | L | F | H | Dφ | |||
| SV1.25-3.2 | #4 | 3.2 | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| SVS1.25-3.5 | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SVL1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SVS1.25-4 | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SVM1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SVL1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SVS1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SVL1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SVS1.25-6 | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SVL1.25-6 | 1/4 | 6.4 | 12.0 | 27.2 | 11.0 | |||
| SV1.25-8 | 5/16 | 8.4 | 14.0 | 29.0 | 12.5 | |||
transport:
Normally, the terminal you order will be sent by express when the payment is clear(Quantity is small).
Also, we can transport the goods by air or by sea(Quantity is big).
Contact Us:
WENZHOU MOGEN ELECTRIC CO., LTD
Address: NO. 119 Xinguang Road, Xinguang Industrial Zone, Liushi Town, Yueqing City, Zhejiang Province, China.
Zip Code: 325604
Skype ID: 448778575@qq.com
Email : export7@mogen.cc
