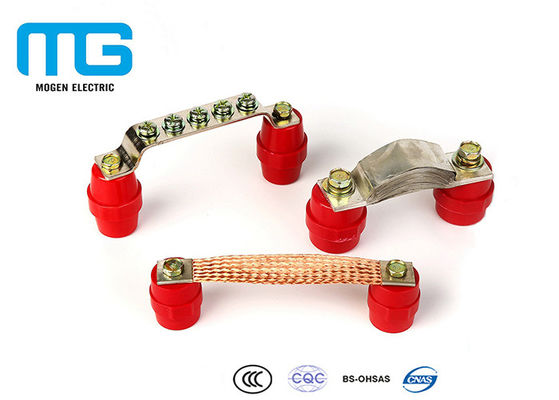

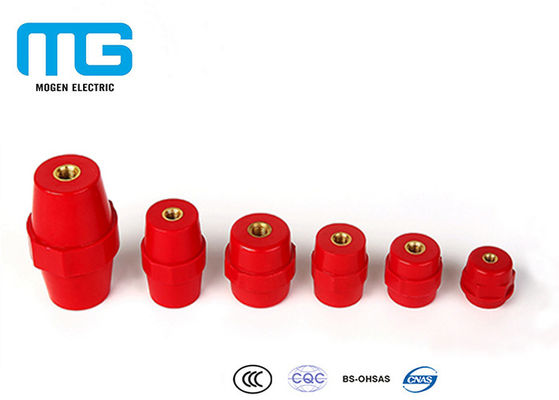

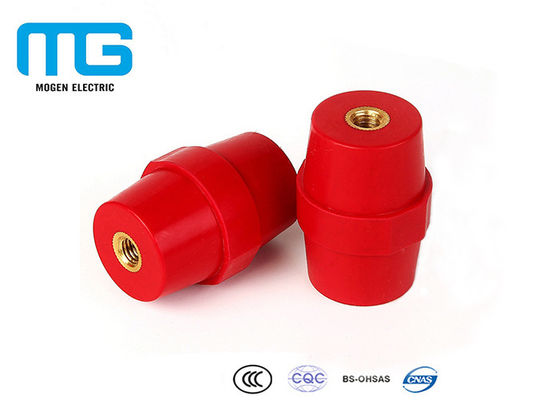

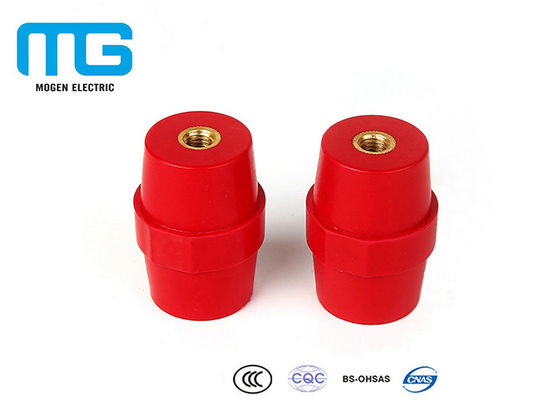

SM-51 Electrical Busbar Insulator , Support Insulator For Busbar
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Inner Material: | Brass, Zine Plated Steel | Outer Matermial: | BMC / SMC |
|---|---|---|---|
| Color: | Red / Black / Yellow / Gray | Operating Temperature: | -40℃~+140℃ |
| Product Name: | Busbar Support Insulator | ||
| High Light: | Cable Lug Sleeve,PVC Cable Sleeving |
||
SM/TSM Type Brass Busbar Insulator
Characteristics :
| Operating temperature | -40℃~+140℃ |
| Insert | Brass, steel with Zine plating |
| Material | BMC (bough moulding compound) ; SMC (sheet moulding compound) |
| Colour, insert, material in capability accordance with customer needs | |
SM-51 Busbar Insulators:
| Tensile strength(LBS) | 1000 |
| Voltage withstand(KV) | 15 |
| Tougue strength(FT LBS) | 20 |
| Screw(mm) | 8 |
| Screw depth(mm) | 14 |
